EPAM 5000 Particulate Monitor

The EPAM 5000 is a highly sensitive and accurate portable monitor for ambient and environmental monitoring. Interchangeable size-selective sampling heads for PM10, PM2.5, PM1.0 and TSP enables specific particle fractions to be targeted.

  • Easy to set up and use
  • Weatherproof case
  • Clear display provides instantaneous readings (concentration, TWA, STEL, Minimum, Maximum)
  • Simultaneous direct reading and gravimetric sampling measurements
  • Interchangeable size-selective sampling heads for PM10, PM2.5, PM1.0 and TSP
  • Integral sample pump
  • Up to 24 hours operation on one battery charge
  • Continuous operation with AC adaptor or optional solar panel
  • Easy to use DustComm Pro Software for data downloading, trend analysis and comprehensive reporting of concentration changes over time

  • Specifications

    Accuracy    ±10% to filter gravimetric SAE fine test dust
    Sensing Range    0.001 to 20 mg/m3
    Display Resolution    0.01 mg/m3
    Particle Size Range    0.1 to 100 µm
    Measurement Precision    ±0.03 mg/m3 (3 µm/m3)
    Calibration    NIOSH Method 0600 gravimetric reference - NIST traceable SAE fine test dust
    Displayed Particle Concentration    Instantaneous, TWA, STEL, Minimum, Maximum
    Sample Flow Rate    4 L/min
    Power    Rechargeable Lead-acid battery or AC Adaptor
    Operating Time    ≥24 hours
    Charging Time    Approx 22 hours
    Alarm Output    90 dB at 3ft
    Digital Output    RS-232
    Data Storage    21,600 data points
    Temperature    Operating: -10 to +50°C (14 to 122°F)
    Storage:    -20 to +70°C (-4 to 158°F)
    Dimensions    15.2 x 35.6 x 25.4 cm (6 x 14 x 10 inches)
    Weight    4500 g (10 lbs)

  • EPAM 5000 Kits

    Contents of the EPAM 500 Particulate Monitor Kit

    Description Part Number
    EPAM 5000 Kit, includes:

    <style="margin: 20px;">Monitor, choice of size-selective impactor, battery, AC Charger 110-240 V, impactor sleeve, DustComm Pro Software on USB Memory Stick, RS-232 computer cable, manual, weather tight carry case

    Kit with PM10 impactor
    Kit with PM2.5 impactor
    Kit with PM1.0 impactor





    770-203
    770-202
    770-201

  • EPAM 5000 Accessories

    Description Part Number
    Impactor PM1.0, interchangeable 770-204  770-204 Impactor PM1.0, interchangeable
    Impactor PM2.5, interchangeable 770-205  770-205 Impactor PM2.5, interchangeable
    Impactor PM10.0, interchangeable 770-206  770-206 Impactor PM10.0, interchangeable
    Impactor Grease 770-211  770-211 Impactor Grease
    Impactor Sleeve, holds impactor for insertion into the sampling inlet 770-212  770-212 Impactor Sleeve, holds impactor for insertion into the sampling inlet
    Calibration Standard, for verifying span and optical sensor performance 770-207  770-207 Calibration Standard, for verifying span and optical sensor performance
    Filter Holder, 47 mm for gravimetric sampling (requires filters, sold separately) 770-215  770-215 Filter Holder, diameter 47 mm, for gravimetric sampling
    PTFE Gravimetric Filter, no support pad, 47 mm 2.0 µm pore size, pack 100 225-17-43  25-2748 PTFE Gravimetric Filter with PTFE support, diameter 47mm, pore size 2.0 µm
    Quartz (Tissuquartz) Gravimetric Filter, 47 mm, 432 µm thick, pack 25 225-1823  225-1823 Quartz (Tissuquartz) Gravimetric Filter, diameter 47mm, thickness 432 µm
    Replacement Zeroing Filter 770-214  770-214 Zeroing Accessory for EPAM 5000
    Tripod, adjustable stand (1 to 2 m) and mounting plate for unattended monitoring 770-217  770-217 Tripod, adjustable stand (1 to 2 m) and mounting plate for unattended monitoring
    Solar Power Panel, provides continuous power where AC mains is not available or accessible 770-230  770-230 Solar Power Panel, provides continuous power to the EPAM 5000 where AC mains is not available or accessible
    Precipitation Cap, prevents rain and mist directly entering the sensor 770-216  770-216 Precipitation Cap, prevents rain and mist directly entering the sensor on the EPAM 5000
    Radio Modem, 900 MHz with up to 450 m line-of-sight transmission 770-505X  770-505X Radio Modem, 900 MHz with up to 450 m line-of-sight transmission
    Weatherproof Enclosure for Radio Modem 770-505WE no image
    Remote Sampling Probe, stainless steel with 1.8 m of Tygon tubing, for hard to reach areas 770-226  770-226 Remote Sampling Probe, stainless steel with 1.8 m of Tygon tubing, for hard to reach areas
    Cleaning Kit, includes bulb, swabs and lens tissue (no air canister) 770-305B  770-305b Cleaning Kit, includes bulb, swabs and lens tissue (no air canister)
    AC Charger 110-240 V , can be used to operate EPAM 5000 continuously 770-219  770-219 AC Charger 110-240 V , can be used to operate EPAM 5000 continuously
    Replacement Lead-Acid Battery Pack 770-229  770-229 Replacement Lead-Acid Battery Pack
    Wireless Network Software for Windows and Apple Computers 770-507 no image
    DustComm Pro Software on USB Flash Drive 770-225  770-225 DustComm Pro Software on USB Flash Drive
    Audible and Visual Threshold Alarm TBC no image
    Interchangeable Impactor PM1.0

    770-204

    Interchangeable Impactor PM2.5

    770-205

    Interchangeable Impactor PM10.0

    770-206

    Impactor Grease

    770-211

    Impactor Sleeve, holds impactor for insertion into the sampling inlet

    770-212

    Calibration Standard, for verifying span and optical sensor performance

    770-207

    Filter Holder, 47 mm for gravimetric sampling

    770-215

    PTFE Gravimetric Filter, no support pad, 47 mm 2.0 µm pore size, pack 150

    225-17-43

    Quartz (Tissuquartz) Gravimetric Filter, 47 mm, 432 µm thick, pack 25

    225-1823

    Replacement Zeroing Filter

    770-214

    Tripod, adjustable stand (1 to 2 m) and mounting plate for unattended monitoring

    770-217

    Solar Power Panel, provides continuous power where AC mains is not available or accessible

    770-230

    Precipitation Cap, prevents rain and mist directly entering the sensor

    770-216

    Radio Modem, 900 MHz with up to 450 m line-of-sight transmission

    770-505X

    Weatherproof Enclosure for Radio Modem

    770-505WE

    Remote Sampling Probe, stainless steel with 1.8 m of Tygon tubing, for hard to reach areas

    770-226

    Cleaning Kit, includes bulb, swabs and lens tissue

    770-305B

    AC Charger 110-240 V , can be used to operate EPAM 5000 continuously

    770-219

    Replacement Lead-Acid Battery Pack for EPAM 5000

    770-229

    Wireless Network Software for Windows and Apple Computers

    770-507

    DustComm Pro Software on USB Flash Drive

    770-225

  • Documentation

    EPAM 5000 Manual

    EPAM 5000 Particulate Monitor
    Instructions

Read more …EPAM 5000 Particulate Monitor

HAZ-DUST I Particulate Monitor

The HAZ-DUST I is ideal as a portable survey tool for particulate monitoring with its simple operation and instantaneous easy to read display of measurements. It is highly sensitive yet lightweight and rugged. Applications include the identification of areas of high levels of respirable dust and evaluating dust generation and suppression.

  • Easy operation and instantaneous readings in mg/m3
  • Two selectable measuring ranges
  • Easy to read digital display
  • Highly sensitive
  • Operates for over 8 hours
  • Built-in battery test facility
  • Optional data logger, supplied with DustComm Pro Software for data downloading, trend analysis and comprehensive reporting of concentration changes over time
  • Optional tripod with adjustable mounting for unattended monitoring

The HAZ-DUST I uses near-forward light scattering to measure dust concentration. As airborne particles enter the instrument they pass through an infra-red light beam and scatter the light. The amount of light that reaches the detector is directly proportional to the aerosol concentration.

  • Specifications

    Accuracy    ±10% to NIOSH 0600
    Sensing Range    0.01 to 200 mg/m3, 0 to 20 mg/m3
    Display Resolution    0.01 mg/m3, 0.1 mg/m3
    Particle Size Range    0.1 to 50 µm
    Calibration    NIOSH 0600 gravimetric reference - NIST traceable SAE fine test dust
    Displayed Particle Concentration    Instantaneous
    Power    Rechargeable NIMH battery
    Operating Time    ≥8 hours
    Charging Time    10 to 12 hours
    Temperature    Operating: -20 to +60°C (-4 to 140°F)
    Storage:    -20 to +60°C (-4 to 140°F)
    Dimensions    23 x 7.6 x 3.8 cm (9 x 3 x 1.5 inches)
    Weight    600 g (21 oz)

  • HAZ-DUST I

    Description Part Number
    HAZ-DUST I Monitor Kit, includes:

    Monitor, 110-240 V AC Charger and carry case (requires calibration with equipment, sold separately)

    		 770-1100

  • HAZ-DUST I Accessories

    Description Part Number
    Calibration Standard, for verifying span and optical sensor performance. A light-scattering device providing a constant value. 770-102  770-102 Calibration Standard, for verifying span and optical sensor performance
    Zeroing Accessory, for pumping filtered air into the sensor for a zero reading in contaminated environments 770-130  770-130 Zeroing Accessory, for pumping filtered air into the sensor for a zero reading in contaminated environments
    Data Logger:

    data storage, on-screen display of statistics and user-selectable alarm threshold, includes analogue signal cable, computer RS-232 interface cable and DustComm Pro Software on a USB Memory Stick. Dimensions: 17.8 x 8.8 x 6.3 cm (7 x 3.5 x 2.5 inches), Weight: 450 g

    		 770-113  770-113 Data Logger for HAZ-DUST I, recording measurements and on-screen statistical display
    Analogue Signal Cable for Data Logger 770-107  770-107 Analogue Signal Cable for Data Logger
    Replacement NiMH Battery Pack for Data Logger 770-127  770-127 Replacement Battery Pack for Data Logger
    Tripod Stand, adjustable stand (1 to 1.5 m) and mounting plate for unattended monitoring 770-129  770-129 Tripod Stand, adjustable stand (1 to 1.5 m) with mounting plate, for unattended monitoring
    Cleaning Kit, includes bulb, swabs and lens tissue 770-305B  770-305b Cleaning Kit, includes bulb, swabs and lens tissue
    AC Charger 110-240 V, can also be used to operate HAZ-DUST I for extended running time 770-131 no image
    Replacement NiMH Battery Pack for HAZ-DUST I 770-108  770-108 Replacement Battery Pack for HAZ-DUST I
    Calibration Standard, for verifying span and optical sensor performance

    770-102

    Zeroing Accessory, for pumping filtered air into the sensor for a zero reading in contaminated environments

    770-130

    Data Logger - data storage, on-screen display of statistics and user-selectable alarm threshold

    770-113

    Analogue Signal Cable for Data Logger

    770-107

    Replacement NiMH Battery Pack for Data Logger

    770-127

    Tripod Stand, adjustable stand (1 to 1.5 m) and mounting plate for unattended monitoring

    770-129

    Cleaning Kit, includes bulb, swabs and lens tissue

    770-305B

    AC Charger 110-240 V, can also be used to operate HAZ-DUST I for extended running time

    770-131

    Replacement Battery Pack for HAZ-DUST I

    770-108

  • Documentation

    HAZ-DUST I Manual

    HAZ-DUST I Particulate Monitor
    Instructions

Read more …HAZ-DUST I Particulate Monitor

HAZ-DUST IV Particulate Monitor

The HAZ-DUST IV displays immediate breathing zone measurements and comprehensive graph reporting of aerosol and dust for occupational hygiene and environmental air investigations. Interchangeable sampling heads enable specific particle fractions to be targeted. An inline 37 mm cassette, located behind the sensor, may be used to collect a concurrent filter sample for gravimetric or chemical analysis.

  • Easy operation and instantaneous, continuous display of TWA, STEL, Minimum, Maximum concentration in mg/m3
  • Sensor mounts directly in the breathing zone for a personal sample
  • Interchangeable sampling heads for Inhalable, Thoracic and Respirable measurements
  • External switch to select between respirable calibration to NIOSH 0600 and 2.75 L/min flow rate (GS-3 Cyclone) or inhalable calibration to NIOSH 0500 and 2 L/min flow rate (IOM Sampler)
  • In-line 37 mm cassette (or optional 25 mm cassette using adaptor) for collecting a concurrent filter sample for gravimetric or chemical analysis
  • Small and lightweight with integral belt clip
  • Operates for over 8 hours using rechargeable NiMH battery
  • Automatic data logging
  • Easy to use DustComm Pro Software for data downloading, trend analysis and comprehensive reporting of concentration changes over time

  • Specifications

    HAZ-DUST IV operates on the principle of near-forward light scattering of infrared radiation. As the airborne particles enter the infrared beam, they scatter the light. The amount of light received by the photodetector is directly proportional to the aerosol concentration. Unique signal processing internally compensates for noise and drift. It immediately and continuously measures the concentration of airborne dust particles and displays the result in mg/m3.

    Accuracy    ±10% to filter gravimetric SAE fine test dust
    Sensing Range    0.01 to 200 mg/m3
    Display Resolution    0.01 mg/m3
    Particle Size Range    0.1 to 100 µm
    Measurement Precision    ±0.02 mg/m3
    Calibration    NIOSH Method 0600 gravimetric reference - NIST-traceable SAE fine test dust
    Displayed Particle Concentration    Instantaneous, TWA, STEL, Minimum, Maximum
    Sample Flow Rate    1.0 to 3.3 L/min (adjustable) - externally switchable 2 L/min or 2.75 L/min
    Power    Rechargeable NIMH battery
    Operating Time    ≥8 hours
    Charging Time    10 to 12 hours
    Digital Output    RS-232
    Data Storage    21,500 data points
    Temperature    Operating: 0 to +50°C (32 to 122°F)
    Storage:   -20 to +70°C (-4 to 158°F)
    Dimensions    Case:   14 x 8.3 x 7 cm (5.5 x 3.25 x 2.75 inches)
    Sensor: 4.4 x 3.8 (1.75 x 1.5 inches)
    Weight    680 g

  • HAZ-DUST IV

    Description Part Number
    HAZ-DUST IV Monitor Kit, includes:

    Monitor, Thoracic sampling head, in-line 37 mm cassette, zeroing filter for inhalable dust, carry case, computer cable, AC Charger 110-240 V, HAZ-DUST Media USB with instruction manual and DustComm Pro Software
    (requires calibration with equipment sold separately, see accessories below)

    		 770-4004

  • HAZ-DUST IV Accessories

    Description Part Number
    IOM Sampling Head with 25 mm cassette 225-70A  225-70A IOM Sampling Head with 25 mm cassette
    IOM Adaptor, for mounting IOM sampling head on HAZ-DUST IV 770-4204  770-4204 IOM Adaptor, for mounting IOM sampling head on HAZ-DUST IV
    Inhalable Impactor and Adaptor 770-115A  770-115A Inhalable Impactor and Adaptor
    Thoracic Sampling Head, mounts on inlet of HAZ-DUST IV sensor 770-4107  770-4107 Thoracic Impactor, mounts on inlet of HAZ-DUST IV sensor
    Respirable Impactor, GS-3 Cyclone, mounts on HAZ-DUST IV sensor 225-103  225-103 Respirable Impactor, GS-3 Cyclone, mounts on HAZ-DUST IV sensor
    Adaptor for Respirable Impactor, required when using GS-3 Cyclone 770-313  770-313 Adaptor for Respirable Impactor, required when using GS-3 Cyclone
    Calibration Standard, for verifying span and optical sensor performance 770-140  770-140 Calibration Standard, for verifying span and optical sensor performance
    Calidaptor, adaptor for calibrating the Inhalable IOM Sampling Head 391-01  391-01 Calidaptor, adaptor for calibrating the Inhalable IOM Sampling Head
    Recommended chek-mate flowmeter, 500-5000 ml/min, for calibrating the Inhalable Sampling Head

    (Other Calibrators available , see Calibration)    		 375-0550  375-0550 chek-mate flowmeter, 500-5000 ml/min, for calibrating the Inhalable Sampling Head
    Calibration Chamber, for calibrating and setting pump airflow when using GS-3 Cyclone 225-112  225-112 Calibration Chamber, for calibrating and setting pump airflow when using GS-3 Cyclone
    Zeroing Accessory, for use with Inhalable Impactor 770-4202A  770-4202A Zeroing Filter, for use with Inhalable Impactor
    Zeroing Accessory, for use with Thoracic Impactors 770-4102  770-4102 Zeroing Filter, for use with Thoracic Impactors
    Cleaning Kit, includes bulb, swabs and lens tissue 770-305B  770-305b Cleaning Kit, includes bulb, swabs and lens tissue
    AC Charger 110-240 V 770-319 no image
    Replacement NiMH Battery Pack 770-4105  770-4105 Replacement Battery Pack for HAZ-DUST IV
    Protective Pouch 770-325 no image
    DustComm Pro Software on USB Flash Drive 770-225  770-225 DustComm Pro Software on USB Flash Drive
    IOM Sampling Head with 25 mm cassette

    225-70A

    IOM Adaptor, for mounting IOM sampling head on HAZ-DUST IV

    770-4204

    Inhalable Impactor and Adaptor

    770-115A

    Thoracic Sampling Head, mounts on inlet of HAZ-DUST IV sensor

    225-4107

    Respirable Impactor, GS-3 Cyclone, mounts on HAZ-DUST IV sensor

    225-103

    Adaptor for Respirable Impactor, required when using GS-3 Cyclone

    770-313

    Calibration Standard, for verifying span and optical sensor performance

    770-140

    Calidaptor, adaptor for calibrating the Inhalable IOM Sampling Head

    391-01

    chek-mate flowmeter, 500-5000 ml/min, for calibrating the Inhalable Sampling Head

    375-0550

    Calibration Chamber, for calibrating and setting pump airflow when using GS-3 Cyclone

    225-112

    Zeroing Accessory, for use with Inhalable Impactor

    770-4202A

    Zeroing Accessory, for use with Thoracic Impactors

    770-4102

    Cleaning Kit, includes bulb, swabs and lens tissue

    770-305B

    AC Charger 110-240 V

    770-319

    Replacement NiMH Battery Pack

    770-4105

    Protective Pouch

    770-325

    DustComm Pro Software on USB Flash Drive

    770-225

  • Documentation

    Haz Dust IV Instructions   Haz-Dust IV Quick Start Guide   Instructions for Calibration Standard 770-140   Instructions for Adapted IOM Sampler for HAZ-DUST IV 770-4204

    HAZ-DUST IV
    Instructions



    HAZ-DUST IV
    Quick Start Guide



    770-140
    Instructions



    770-4204
    Instructions

Read more …HAZ-DUST IV Particulate Monitor

HAZ-SCANNER EPAS

The portable HAZ-SCANNER EPAS is a true environmental air station providing ambient air quality monitoring of critical EPA criteria pollutants and air parameters. EPAS is the only instrument on the market to offer true simultaneous monitoring of PM10 and PM2.5. EPAS is available in two kits: Basic and build your own (Foundation). Both offer the ability to configure with different toxic chemical sensors, size-selective impactors, and EPAS-specific meters to simultaneously measure up to 14 critical air parameters. Several wireless and networking options are available as well as datalogging capabilities. Graphing and reporting software is compatible with PC and Mac.

HAZ-SCANNER Wireless EPAS Applications include:

  • Ambient/urban air quality monitoring
  • Hazardous incident response
  • Waste site remediation/land reclamation monitoring
  • Military/homeland security
  • Perimeter monitoring
  • Near roadway monitoring

  • Specifications

    Display    LCD
    Operation    4 key splashproof membrane switch
    Power    12V Absorption Glass MAT (AGM) rechargeable battery
    Operating Time    8 hours on battery, continuous on AC or optional solar panel
    Display Measurements    TWA, STEL, Max, Min
    Recording Time    1 second to 21 weeks
    Sampling Rate    1 second, 1 minute, 10 minute, 1 hour adjustable
    Data Storage    454,545 data points
    Sampling Pump    1-3 L/min
    Digital Output    RS232 (PC), RS423 (Mac)
    Software    PC or Mac compatible
    Dimensions    15.2 x 35.6 x 25.4 cm (6 x 14 x 10 in)
    Weight    5400 g (12 lbs)
    Operating Temperature    -5 to 50°C (23 to 122°F)
    Storage Temperature    -40 to 60°C (-4 to 140°F)
    Humidity    95%, non-condensing (use inlet heater)
    Auxiliary Analogue Output    0 to 2.5V DC ( channel for alternative meter)
    Communication Options
    • Wireless Radio Modem: 900 MHz (USA), 868MHz (Europe), up to 5 miles line of sight (optional)
    • WiFi Server Transmitter: 2.4/5 GHz, for up to 3 miles line of sight (optional)
    • Mobile Network: GPRS cellular router
    • Ethernet/Web: Wired LAN/WAN connection to web server
    • Wireless Network Software: Connect up to 8 EPAS to a central PC or Mac

  • HAZ-SCANNER EPAS Kits

    Description Part Number
    HAZ-SCANNER EPAS Basic Kit, includes:

    PM10 impactor (measures TSP when no impactor is installed), CO sensor (0 to 10 ppm), NO2 sensor (0 to 5 ppm), EPAS system with internal sample pump and internal battery in a NEMA 4 enclosure* , universal battery charger (110-240 V AC, supplied with U.S., Euro, AUS, and UK adapter cables), external power connector cable, gas scrubber, precipitation/solar cap, impactor sleeve with compression plate and dust seal, and USB memory stick with instruction manual and HAZ-SCANNER Software. Basic EPAS can be expanded with up to 11 additional sensors - see below.

    		 770-500K1
    EPAS Foundation Kit, includes:

    EPAS system with internal sample pump and internal battery in a NEMA 4 enclosure* , universal battery charger (110-240 V AC, supplied with U.S., Euro, AUS, and UK adapter cables), external power connector cable, and USB memory stick with instruction manual and HAZ-SCANNER Software. Requires configuration with up to 14 sensors - see below.

    		 770-500

    * EPAS is for use in general electrical classified areas; the unit/sensors/meters are NOT intrinsically safe for hazardous environments.

  • HAZ-SCANNER EPAS Number of Configurable Options

    Sensor Category Basic Kit Available Slots Foundation Kit Available Slots
    Particulate (PM) 1 2
    Toxic Gas 6 8
    Meters/Meteorological 4 4

  • EPAS Particulate Sensors

    Particulate Sensor Range Part Number
    PM1.0 1μm 770-531
    PM2.5 2.5μm 770-532
    PM10 10μm 770-530

    Total suspended particulates (TSP) software configuration also available, Part Number 770-911.

  • EPAS Gas Sensors

    Gas Sensor Technology Range Part Number
    VOCs PID 0 to 50,000 ppb (0 to 50 ppm) 770-543
    Ammonia NH3 Electrochemical 0 to 100 ppm 770-555
    Carbon Dioxide CO2 NDIR 0 to 5000 ppm 770-542
    Carbon Monoxide CO Electrochemical 0 to 10 ppm 770-544
    Chlorine Cl2 Electrochemical 0 to 100 ppm 770-552
    Ethylene Oxide C2H4O Electrochemical 0 to 1500 ppm 770-558
    Methane CH4 NDIR 0 to 1%vol, 0-10,000 ppm, 0 to 20% lel 770-549
    Hydrocarbons HC (non-Methane) NDIR Calibrated for 0 to 20% lel of selected gas 770-550
    Hydrogen Chloride HCl Electrochemical 0 to 100 ppm 770-556
    Hydrogen Cyanide HCN Electrochemical 0 to 100 ppm 770-553
    Hydrogen Sulphide H2S Electrochemical 0 to 25 ppm 770-554
    Nitric Oxide NO Electrochemical 0 to 5000 ppb 770-551
    Nitrogen Dioxide NO2 Electrochemical 0 to 5000 ppb (0 to 5 ppm) 770-545
    Nitric Oxide NO and Nitrogen Dioxide NO2 Calculated values 0 to 10,000 ppb 770-551-1
    Oxygen O2 Electrochemical 0 to 30% vol 770-546
    Ozone O3 Metal Oxide Semiconductor 0 to 150 ppb ( 0 to 0.15 ppm) or
    0 to 500 ppb (0 to 0.5 ppm)    		 770-547
    Phosphine PH3 Electrochemical 0 to 100 ppm 770-557
    Sulphur Dioxide SO2 Electrochemical 0 to 5000 ppb (10 to 500 ppb for ambient applications) 770-548

  • EPAS Meter/Meteorological Sensors

    Sensor Technology Range Part Number
    Rainfall/Precipitation Rain Gauge 0 to 25 cm (5 inches) daily 770-540
    Temperature
    Relative Humidity (RH)    		 NTC
    CAP    		 -20 to 60°C (-40 to 140°F)
    0 to 100% RH    		 770-585
    Solar Radiance Intensity Photodiode 0 to 1800 W/square metre (W/m2) 770-539
    Sound Class 2 Sound Level Meter 30 to 135 decibels (dB) 770-580
    Atomic/Nuclear Radiation Geiger Counter 1 to 19,999 counts per minute (cpm) or 0.001 to 100 milliRad/hr 770-534
    Wind Speed and Direction 3 cup anemometer and continuous rotation potentiometric wind direction vane Speed: 0 to 125 mph (0 to 55.9 m/s, 0 to 201 km/h)
    Direction: 5 to 355 degrees    		 770-541
    Barometric Pressure* Piezo Resistive 28.25 to 30.75 in Hg 770-533
    Dew Point Temperature** Software calculation from RH and temperature -16 to 50°C (3.2 to 122°F) 770-535

    *   Due to its location this sensor also counts towards the maximum number of 'gas sensors', as well as the maximum number of 'meters/meteorlogical sensors'
    ** Software calculation - does not count towards the maximum number of 'meter/meteorlogical sensors'

  • EPAS Accessories

    Description Part Number
    Rain Trap 770-579
    Calibration Adaptor for Gas Sensor 770-561
    Zeroing Accessory 770-214A
    Precipitation Cap 770-578
    Transmitter for Use with Radio Modem - range 5 miles 770-506
    Radio Modem - range 5 miles 770-505X5
    Wireless Network Software 770-507
    WiFi Server Transmitter - 2.4GHz frequency 770-508
    GSM Module (Cellular Router) 770-509
    Rotameter - 0 to 2.5 L/min 770-910
    Acid Gas Scrubber 770-513
    Particulate Calibration Standard 770-515
    Impactor Sleeve 770-516
    Impactor Grease 770-211
    Conditioning Inlet Heater 770-517
    Tripod Stand, 1 to 2 m (3 to 6 ft) 770-518
    Tripod Stand - Extended Height 770-518-E
    Support Kit for Tripod Stand 770-518-W
    AGM Lead-Acid Battery Pack 770-519
    Single Charger 770-520
    External Power Connector Cable 770-521
    Car Power Adaptor 770-522
    External Backup Battery 770-523
    External Backup Battery - Adaptor Cable 770-524
    External Backup Battery - Single Charger 770-525
    Solar Panel - 100W 770-526
    External Audible and Visual Alarms 770-527
    Ethernet Connection Cable 770-528

  • Documentation

    EPAS Datasheet   Environmental Perimeter Air Station (EPAS) Manual   Environmental Perimeter Air Station (EPAS) Brochure

    HAZ-SCANNER EPAS
    Datasheet



    HAZ-SCANNER EPAS
    Manual



    HAZ-SCANNER EPAS
    Brochure

Read more …HAZ-SCANNER EPAS

HAZ-SCANNER IEMS Indoor Environmental Monitoring Station - DISCONTINUED

The HAZ-SCANNER™ IEMS portable, indoor environmental air monitoring station can be configured for up to 14 simultaneous air measurements including standard configuration of PM10 or TSP, CO2, CO, temperature, and relative humidity. Use the IEMS for air profiles at schools, LEED green building certification, job task analysis, and IEQ assessments.

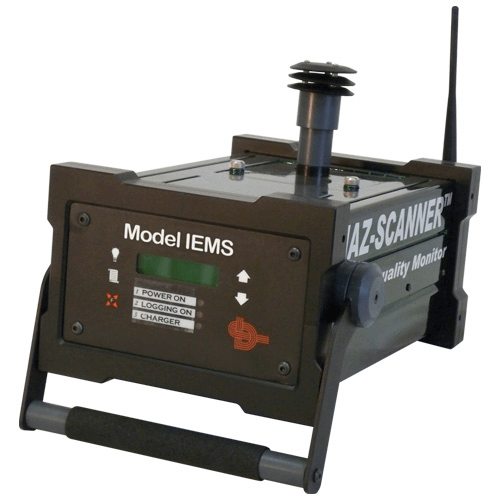

HAZ-SCANNER IEMS

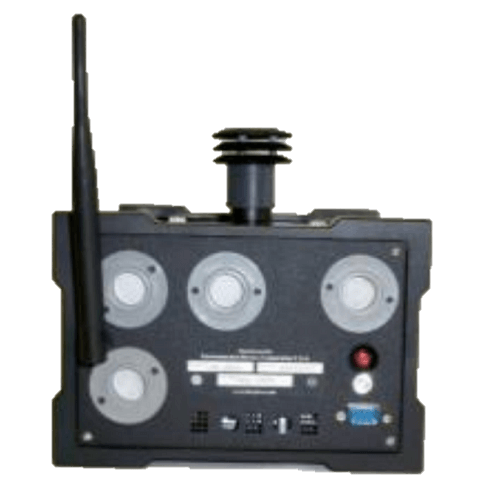

HAZ-SCANNER IEMS Rear

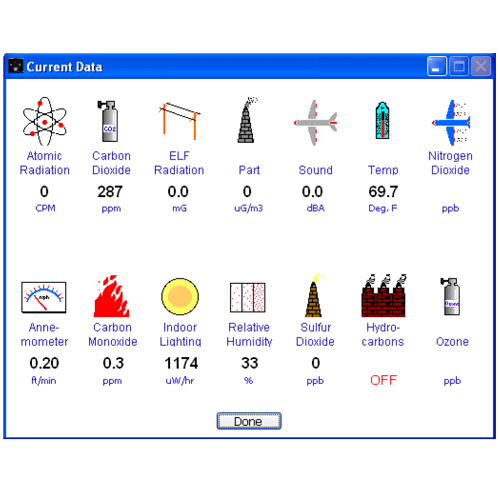

HAZCOMM Software

  • Direct reading
  • Measures and displays data for up to 14 critical indoor air quality parameters
    • Standard IEMS configuration: measure 5 parameters including PM10 or TSP particulates, CO2, CO, temperature, and relative humidity
    • Optional: Add up to 9 optional interchangeable sensors and/or IEMS-specific meters (up to 9 sensors/meters total)
      Choose from additional toxic gas sensors, PID for VOCs, or IEMS-specific meters for light intensity, sound/noise, atomic/nuclear radiation, ELF radiation, and air velocity
    • Available analogue input port for alternative meter
  • Interchangeable size-selective impactors are available for PM1.0, PM2.5, or PM4.0 (close approximation of respirable)
  • In-line standard 37 mm or optional 25 mm gravimetric filter cassette provides concurrent filter sampling for chemical and biological analyses
  • Internal sample pump provides flow rate of 2 L/min
  • NiMH battery for 8-hour operation, continuous operation with AC power
  • Displays TWA, STEL, Max, and Min
  • Optional alarm indicator light and siren for user-defined threshold limits
  • Removable handheld sensors for spot-checking remote areas
  • Datalogging and optional real-time wireless data transmission
  • Easy-to-use graph and reporting software — compatible with PC and Mac

Specifications

Display    LCD
Operation    4 key splashproof membrane switch
Power    12V NiMH rechargeable battery
Operating Time    8 hours on battery, continuous on AC
Display Measurements    TWA, STEL, Max, Min
Recording Time    1 second to 50 weeks
Sampling Rate    1 second, 1 minute, 10 minute intervals
Data Storage    454,545 data points
Sampling Pump    2 L/min
Digital Output    RS232 (PC), RS423 (Mac)
Software    PC or Mac compatible
Dimensions    17.8 x 10.2 x 28 cm (7 x 4 x 11 in)
Weight    2700 g (6 lbs)
Operating Temperature    -5 to 50°C (23 to 122°F)
Storage Temperature    -20 to 60°C (-4 to 140°F)
Humidity    95%, non-condensing
Auxiliary Analogue Output    0 to 2.5V DC ( channel for alternative meter)

HAZ-SCANNER IEMS

Description Part Number
HAZ-SCANNER IEMS Standard Configuration, includes:

particulate sensor for TSP, impactor for PM10 sampling, CO2, CO, temperature, and relative humidity sensors, NiMH battery and charger, HazComm Pro Software and Instructions on USB Memory Stick, cables and carry case

 770-800

IEMS-specific Optional Meters (up to 5)

Each meter includes a holder to mount the meter on the tripod accessory.

Description Part Number
Air Velocity Meter, 80 to 5910 ft/min 770-801 no image
Atomic/Nuclear Radiation Meter, 1 to 19,999 cpm or 0.001 or 100 mR/hr 770-802  770-802 Atomic/Nuclear Radiation Meter, 1 to 19,999 cpm or 0.001 or 100 mR/hr for HAZ-SCANNER IEMS
ELF (Extremely Low Frequency) Gauss Radiation Meter, 1 to 200 G 770-803 no image
Indoor Light Intensity Meter, 0 to 50,000 lux/0 to 5000 fc 770-804  770-804 Indoor Light Intensity Meter, 0 to 50,000 lux/0 to 5000 fc for HAZ-SCANNER IEMS

IEMS-specific Optional Sensors (up to 4)

Each meter includes a holder to mount the meter on the tripod accessory.

Description Part Number
Nitrogen Dioxide Sensor, 0 to 20 ppm 770-805  770-805 Nitrogen Dioxide Sensor, 0 to 20 ppm for HAZ-SCANNER IEMS
Sulphur Dioxide Sensor, 0 to 20 ppm 770-806  770-806 Sulphur Dioxide Sensor, 0 to 20 ppm for HAZ-SCANNER IEMS
Oxygen Sensor, 0 to 30 %vol 770-807  770-807 Oxygen Sensor, 0 to 30 %vol for HAZ-SCANNER IEMS
Ozone Sensor, 0 to 0.5 ppm 770-808  770-808 Ozone Sensor, 0 to 0.5 ppm for HAZ-SCANNER IEMS
Ozone Sensor, 0 to 5ppm 770-818  770-818 Ozone Sensor, 0 to 5ppm for HAZ-SCANNER IEMS
PID for VOCs, 0 to 2000 ppm (isobutylene equivalent) 770-809 no image
Formaldehyde Sensor 770-819  770-819 Formaldehyde Sensor for HAZ-SCANNER IEMS
Hydrogen Sulphide Sensor, 0-100 ppm 770-820  770-820 Hydrogen Sulphide Sensor, 0-100 ppm, for HAZ-SCANNER IEMS

IEMS Accessories

Description Part Number
Size-selective Impactor, PM1.0 770-811 no image
Size-selective Impactor, PM2.5 770-812 no image
Size-selective Impactor, PM4.0/respirable 770-813 no image
Size-selective Impactor, PM10 770-821 no image
Calibration Standard, particulate, for verifying span and optical sensor performance 770-207  770-207 Calibration Standard, particulate, for verifying span and optical sensor performance
Tripod Stand, includes holder for IEMS, 1 to 1.5 m (3 to 5 ft) 770-814  770-814 Tripod Stand, includes holder for HAZ-SCANNER IEMS, 1 to 1.5 m (3 to 5 ft)
External audible alarm 770-815 no image
Wireless Radio Modem, 900 MHz (US), 868MHz (Europe) with up to 450 m line-of-sight transmission 770-505X  770-505X Wireless Radio Modem, 900 MHz (US), 868MHz (Europe) with up to 450 m line-of-sight transmission
Single AC Charger, 110-220V 770-825 no image
Replacement NiMH Battery Pack 770-810  770-810 Replacement NiMH Battery Pack for HAZ-SCANNER IEMS
Calibration Gas Regulator, 1 L/min, for calibrating HAZ-SCANNER sensors 770-816  770-816 Calibration Gas Regulator, 1 L/min, for calibrating HAZ-SCANNER IEMS gas sensors
Wireless Network Software for Windows and Apple Computers 770-507 no image

Documentation

IEMS Datasheet

HAZ-SCANNER IEMS
Datasheet

Particulate Sampler Selection GuideParticulate Sampler Selection Guide
Hazard SearchHazard Search
What is Air Sampling?What is Air Sampling?
ContactContact

More Articles …
