Cassette Inserts
Cassette Inserts prevent loss of sample during transport, and remove the need to rinse or wipe the cassette walls eliminating sample loss.

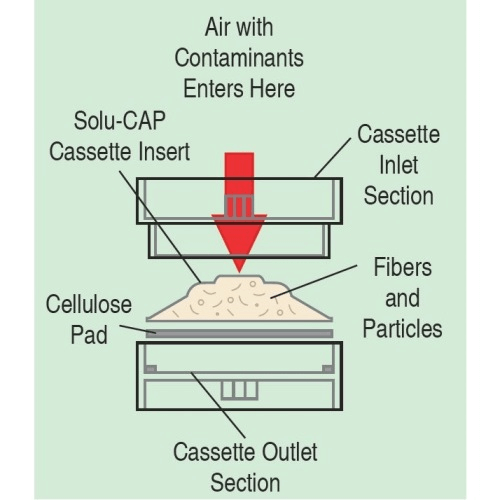

Solu-CAP Cassette Inserts for Metals Analysis
Solu-CAPs are ideal for metal determinations and provide for the inclusion of non-filter deposits as specified in several NIOSH elemental analytical methods.
- The Solu-CAP captures all particles for metal analysis, and eliminates the need to wipe cassette walls for analysis - no sample losses
- Solu-CAP inserts are dome-shaped filter capsules moulded of clear static-dissipative dissoluble cellulose acetate that are heat-sealed to a quality MCE filter
- The entire sampler is completely soluble following NIOSH Method 7300 digestive procedure
- Solu-CAP is now specified in NIOSH 7306.
- Solu-CAPs are supplied preloaded in two-piece SureSeal Cassettes with support pads
| Diameter (mm) | Filter Description | Cassette Description | Pack Size | Part Number |
| 37 | Mixed cellulose ester (MCE), 0.8 µm pore size, with support pad | 2-piece, clear styrene | 50 | 225-8517 |
| Cassette Opener, stainless steel, suitable for 25, 37, and 47-mm filter cassettes. Required for all SureSeal Cassettes. |
Each | 225-13-5B | ||

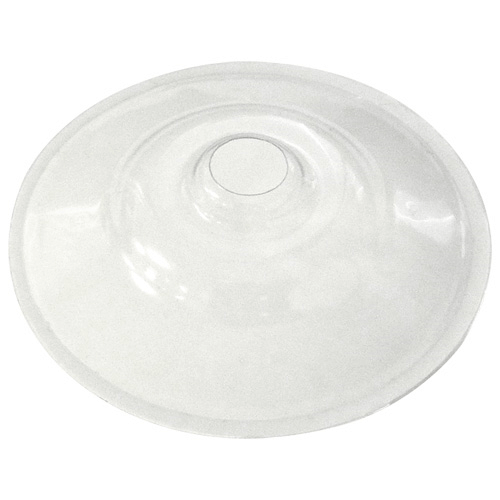

Accu-CAP Cassette Inserts for Gravimetric Analysis
Ideal for capturing an entire sample for gravimetric analysis. Accu-CAP features a static-dispative plastic dome, sealed to a qualty PVC filter and fits between the inlet and outlet sections of a SKC SureSeal 2-piece cassette with support pad.
- Meets specifications of NIOSH Method 0501 for gravimetric analysis
- Ensure entire sample is captured and analyzed
- Addresses NIOSH concerns about cassette wall losses
- Fits inside a 37-mm, 2-piece SKC cassette with support pad
- Static-dissipative plastic dome on PVC filter contains entire sample
-
- No cassette rinsing or wiping required
- Prevents loss of sample during transport
- No particles dislodged from filter during analysis preparation
- Ideal for sampling total dust (NIOSH 0500 and 0501) and carbon black (NIOSH 5000)
| Diameter (mm) | Filter Description | Pack Size | Part Number |
| 37 | PVC, 5.0 µm pore size | 60 | 225-8516GLA |
Requires 37-mm 2-piece cassette and support pads:
| Diameter (mm) | Description | Pack Size | Part Number | |
| 37 | 2-piece clear styrene cassette blank | 10 50 250 |
225-2LF 225-2050LF 225-2250 |
 |
| 37 | Cellulose support pad | 100 500 |
225-27 225-2700 |
 |
| Cassette Opener, stainless steel, suitable for 25, 37, and 47 mm filter cassettes. Required for all SureSeal Cassettes. |
Each | 225-13-5B |  |
|
