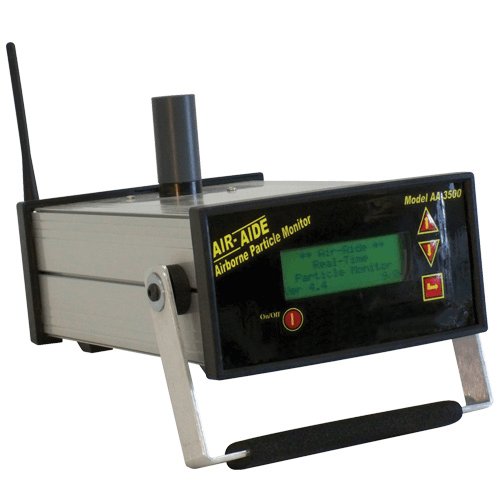

AIR-AIDE Particulate Monitor
The AIR-AIDE is a fixed point monitor with interchangeable size-selective impactors to survey dust levels, and is powered by a long life internal air sample pump to maintain accurate flow for particle separation. The AIR-AIDE has built-in calibration factors for fine and coarse particulate matter.
-
- Sample pump maintains accurate flow for particle separation
- Easy to read digital display showing instantaneous readings in mg/m3, and TWA, STEL, Minimum and Maximum
- Interchangeable size-selective impactors
- Built-in correction factors for fine and coarse particulate matter
- On-screen programmable sampling and storage options
- Large data storage capacity
- 10 hour run time with rechargeable NiMH battery
- Extended running time with AC adaptor
- Optional wireless data transmission to PC
- Easy to use DustComm Pro Software for data downloading, trend analysis and comprehensive reporting of concentration changes over time
For exposure monitoring of dusts and aerosols including:
| Lead |
|
Toxic soil remediation |
|
Silica |
| Welding fumes |
|
Tobacco smoke |
|
Construction dust |
| Coal Dust |
|
Dry chemical |
|
Wood/paper |
| Oil mists |
|
Concrete/cement |
|
Grinding dusts |
| Cadmium |
|
Pharmaceuticals |
|
Nuisance dusts |
| Spray paint |
|
Chromate |
|
Grain |
Specifications
| Accuracy |
|
±10% to filter gravimetric SAE fine test dust |
| Sensing Range |
|
0.001 to 20 mg/m3 (or optional 0.01 to 200 mg/m3) |
| Display Resolution |
|
0.001 mg/m3 |
| Particle Size Range |
|
0.01 to 100 µm |
| Particle Size Measurement |
|
1 µm, 2.5 µm, 4.0 µm or 10 µm |
| Measurement Precision |
|
±0.03 mg/m3 (3 µg/m3) |
| Calibration |
|
NIOSH 0600 gravimetric reference - NIST traceable SAE fine test dust |
| Displayed Particle Concentration |
|
Instantaneous, TWA, STEL, Minimum, Maximum |
| Sample Flow Rate |
|
2 L/min |
| Power |
|
Rechargeable NiMH battery or AC adaptor |
| Operating Time |
|
≥10 hours |
| Charging Time |
|
<10 hours |
| Alarm Output |
|
90 dB at 3 ft |
| Digital Output |
|
RS-232 |
| Data Storage |
|
21,600 data points |
| Sampling Rate |
|
Short term: 2, 4, 10 seconds, Long term: 1, 10 or 30 minutes |
| Temperature |
|
Operating: -10 to +50°C (14 to 122°F)
Storage: -20 to +70°C (-4 to 158°F) |
| Dimensions |
|
7.6 x 15.2 x 22.9 cm (3 x 6 x 9") |
| Weight |
|
2300 g (5lbs) |
AIR-AIDE
| Description |
Part Number |
| AIR-AIDE Kit includes,
Monitor (0.001 to 20 mg/m3), NiMH battery, 110-240 V AC charger/adaptor, rotameter, impactor sleeve for TSP, DustComm Pro Software on USB Memory Stick, RS-232 computer cable and manual
|
770-600 |
AIR-AIDE Accessories
| Description |
Part Number |
|
| Size-selective Impactor PM1.0, interchangeable |
770-604 |
  |
| Size-selective Impactor PM2.5, interchangeable |
770-605 |
|

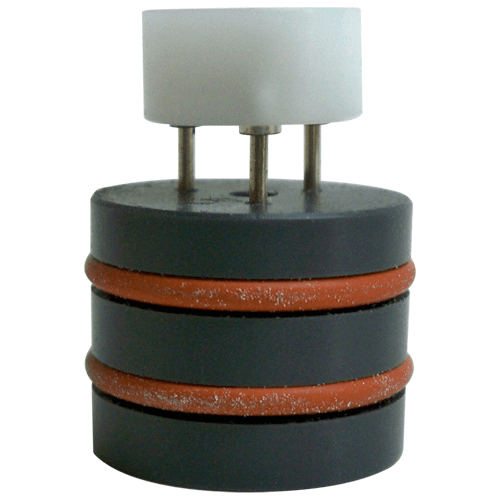

| Size-selective Impactor PM4.0/respirable, interchangeable |
770-603 |
|
| Size-selective Impactor PM10, interchangeable |
770-606 |
|
| Impactor Grease |
770-211 |
  |

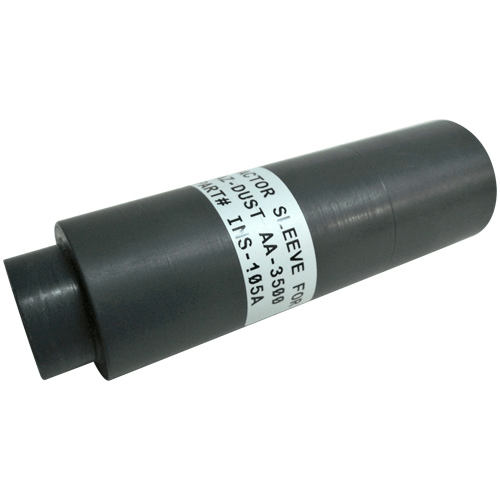

| Impactor Sleeve, holds impactor for insertion into the sampling inlet |
770-602 |
  |
| Calibration Standard, for verifying span and optical sensor performance |
770-207 |
  |
| Radio Modem, 900 MHz with up to 450 m line-of-sight transmission |
770-505X |
}   |

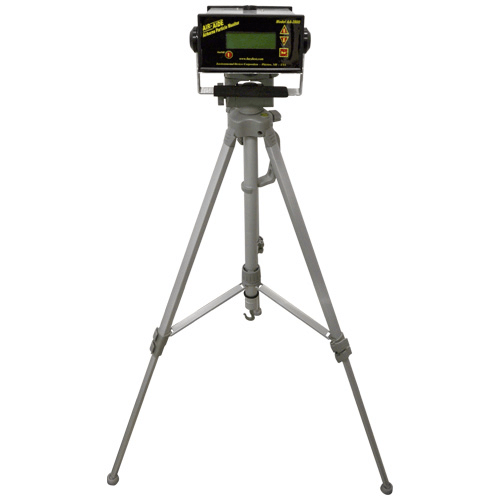

| Tripod, adjustable stand (1 to 1.5 m) and mounting plate for unattended monitoring |
770-607 |
  |
| Precipitation Cap, prevents rain and mist directly entering the sensor |
770-216 |
  |

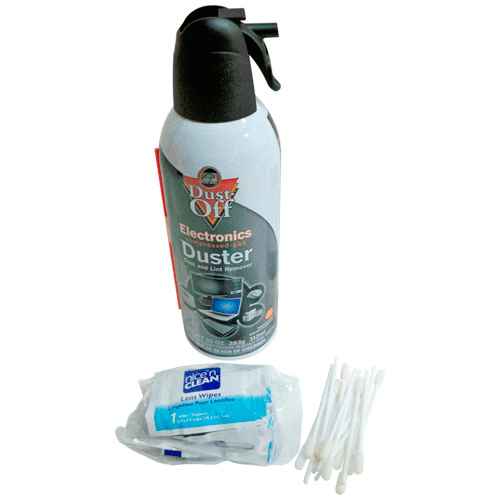

| Cleaning Kit, includes dust-free air canister, swabs and lens tissue |
770-305 |
  |
| Cleaning Kit, includes bulb, swabs and lens tissue (no air canister) |
770-305B |
 |
| AC Charger 110-240 V , can be used to operate AIR-AIDE continuously |
770-608 |
|

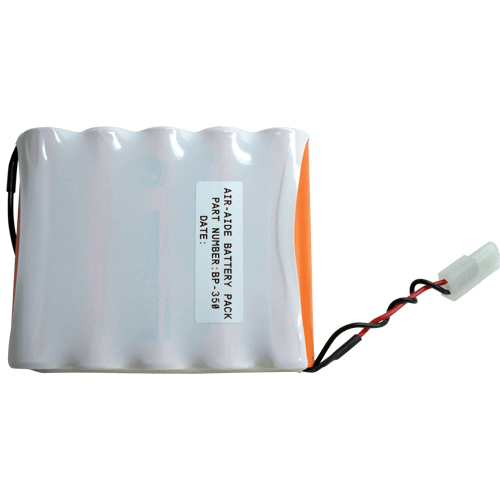

| Replacement NiMH Battery Pack |
770-601 |
  |
| DustComm Pro Software on USB Flash Drive |
770-225 |
|
