SKC Leland Legacy Pump

The Leland Legacy is the ultimate in high flow sampling providing the high flow and long run times of a vacuum-style pump in a compact, portable and battery-operated sampler.

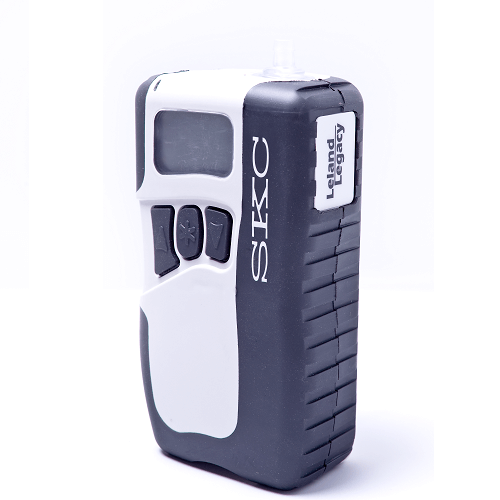

Leland Legacy Pump
  • Ideal for 24 hour indoor air monitoring or unattended ambient air sampling
  • Provides high flows and long run times
  • Low operational noise
  • Advanced compensated flow control
  • Programmable run times using the large keypad or optional DataTrac PC software
  • Rubberised case provides grip and protection
  • Pump running indicator LED
  • Automatic calibration using CalChek and High Flow chek-mate
  • Records pump history, downloadable using optional DataTrac PC software

Applications

Specifications
Flow System
  • Flow range: 5,000 to 15,000 ml/min
  • Constant flow compensation provides constant flow within ±5% for accurate air volume
  • Built-in replaceable particulate trap to prevent contamination of sample
  • Flow fault icon appears if flow is restricted or blocked
  • Auto-restart is attempted after flow fault
Power Supply
  • Rechargeable Li-Ion battery pack provides 24+ hours minimum run time at 5000 ml/min (depending on media used)
  • Low battery indication on LCD
  • Charging time: 15 hours
Display
  • Displays flow rate, volume, temperature, atmospheric pressure, date and time, run time and pump status
  • Continuously displays volume, pump and battery status
User Adjustable Values
  • Sample run time, calibration, clock display, flow rate, time of day, delayed start, temperature and atmospheric units
Operating Temperature
  • 0 to 40°C (32 to 104°F)
Case
  • Anti-static thermoplastic case with protective rubber overmoulding and integral belt clip
Tubing Required
  • 3/8" ID
Dimensions
  • 20.0 x 10.0 x 7.0 cm (7.9 x 3.9 x 2.75")
Weight
  • 1000 g (35.2 oz)
Leland Legacy Pump
Description Part Number

Leland Legacy Pump with Li-Ion battery pack, Start-up Guide and mini screwdriver set.

Requires SKC Approved Single Charger (223-241)

100-3002
Leland Legacy Pump Kits
Description Part Number
Single Pump Kit includes:

Leland Legacy Pump, Li-Ion battery pack, Start-up Guide, mini screwdriver set, 1 m length Tygon tubing and Single Charger, in a carry case

100-3002K
Five Pump Kit includes:

5 Leland Legacy Pumps, 5 Li-Ion battery packs, Start-up Guides, mini screwdriver sets, 5 x 1 m lengths of Tygon tubing, 5 Single Chargers, in a carry case

100-3002K5
Leland Legacy Pump Accessories
Description Part Number
Single Charger 100-240 V with multiplug for UK, Europe, USA, Australia, New Zealand 223-241   223-241 Single Charger 100-240 V with multiplug for UK, Europe, USA, Australia, New Zealand
chek-mate flowmeter, 5.0-30.0 l/min (recommended)

(Other Calibrators available , see Calibration)
375-50300  375-50300 chek-mate flowmeter, 500-5000 ml/min, 5-30 ml/min
Pulsation Dampener, for use with chek-mate 375-50300 375-150   375-150 Pulsation Dampener for use with check-mate 375-50300
Noise-reducing Black nylon pouch with adjustable waist belt and shoulder strap - can reduce noise level from 62.5 to 52dBA 224-89   224-89 Noise-reducing Black nylon pouch with adjustable waist belt and shoulder strap for Leland Legacy
Hard-Sided Single Pump Case which is watertight, airtight, dustproof and crushproof (LxWxH: 33.9 x 29.5 x 15.2 cm)  224-912   224-912 Pelican Hard-Sided Single Pump Case which is watertight, airtight, dustproof and crushproof for Leland Legacy pump
Hard-Sided Five Pump Case which is watertight, airtight, dustproof and crushproof. It has wheels for easy transport and a retractable handle (LxWxH 55.9 x 35.1 x 22.9 cm). 224-905   224-905 Pelican Hard-Sided Five Pump Case which is watertight, airtight, dustproof and crushproof for Leland Legacy pump
Waist belt, extends up to 122 cm (48 inches). 224-12   224-12 Waist belt for holding pump, extends up to 122 cm (48 inches).
Replacement Li-Ion Battery Pack P75692A   Replacement Li-Ion Battery Pack for Leland Legacy sample pump
DataTrac PC Software & Interface Kit for Leland Legacy 877-92K   DataTrac PC Software & Interface Kit for Leland Legacy
CalChek Communicator Cable, for use with chek-mate (375-50300) 375-200  CalChek Communicator Cable, for use with chek-mate (375-50300)
CalChek Communication Cable, for use with a Defender Calibrator 210-502   210-502 CalChek Communication Cable, for Leland Legacy use with a Defender Calibrator
Single Charger 100-240 V with multiplug for UK, Europe, USA, Australia, New Zealand

223-241

chek-mate flowmeter, 5.0-30.0 l/min

375-50300

Pulsation Dampener, for use with chek-mate 375-50300

375-150

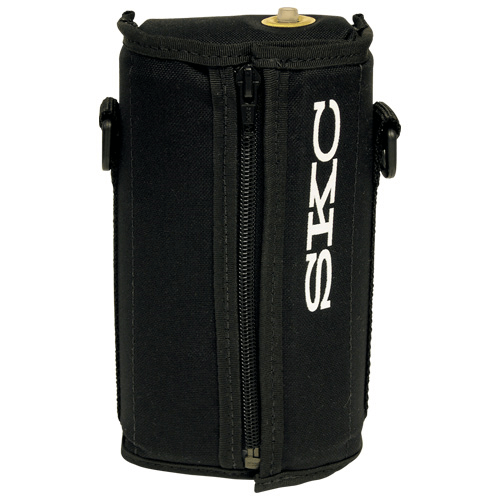

Noise-reducing Black nylon pouch with adjustable waist belt and shoulder strap

224-89

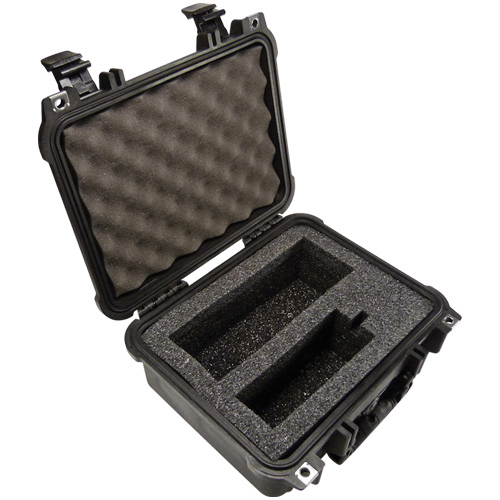

Pelican Hard-Sided Single Pump Case which is watertight, airtight, dustproof and crushproof

224-912

Pelican Hard-Sided Five Pump Case which is watertight, airtight, dustproof and crushproof

224-905

Waist belt, extends up to 122 cm

224-12

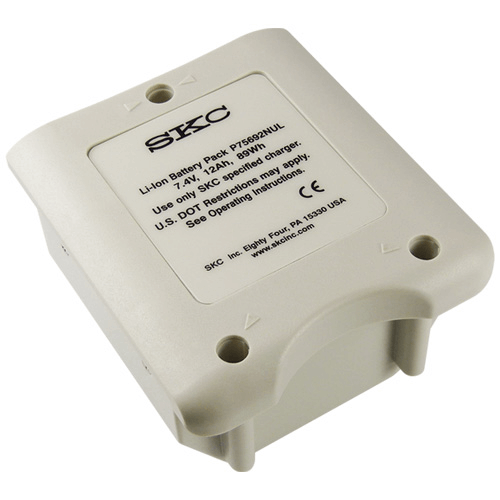

Replacement Li-Ion Battery Pack

P75692A

CalChek Communication Cable

210-502



DataTrac PC Software & Interface Kit for Leland Legacy

877-92K

DataTrac USB Adaptor Cable for Leland Legacy

P22103B

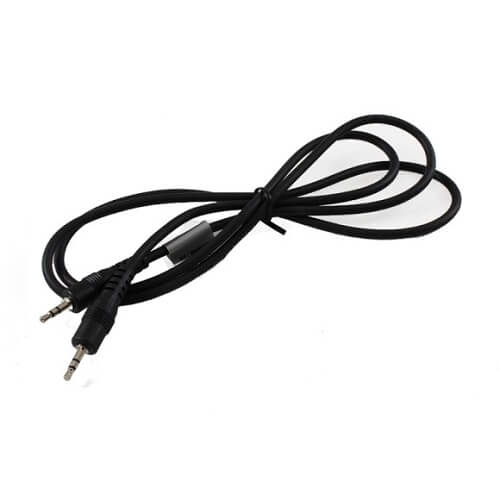

CalChek Communicator Cable, for use with chek-mate (375-50300)

375-200

CalChek Communication Cable, for use with a Defender Calibrator

210-502
