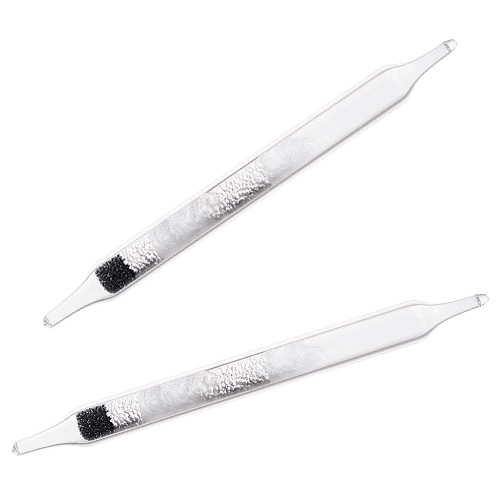

Silica Gel Sorbent Tubes

Silica gel is the adsorbent material for sampling polar hydrocarbons, low molecular weight mercaptans, methanol, amines, and inorganic acids. Treated Silica gel tubes are also used, e.g. 2, 4-dinitrophenylhydrazine for aldehyde sampling, sulphuric acid treated for ammonia.

Silica Gel Sorbent Tubes
Silica Gel Sorbent Tubes

To select a tube for a specific compound refer to the SKC Sampling Guides or use our SKC online Hazard Database

Sorbent
(coating)
Size (mm)
ODxLength
Sections Sorbent
(mg)
Ends Tube
Cover
Separators Pack
Size
Part Number
Silica Gel 8 x 110  2 520/260 GS  B    FWW 50 226-15
Silica Gel 8 x 110  2 520/260 GS  B    WWW 50 226-15GWS
Silica Gel 10 x 110  2 1040/260 GS  C    FWW 50 226-22
Silica Gel 6 x 70  2 100/50 GS  A    WWW 50 226-47-01
Silica Gel 7 x 110  2 150/150 GS  B    WWW 50 226-48
Silica Gel 6 x 70  2 100/50 GS  A    FWW 50 226-51
Silica Gel 6 x 70  2 150/75 GS  A    FWW 50 226-10
Silica Gel 8 x 110  2 300/150 GS  B    WWW 50 226-10-04
Silica Gel (Hydrochloric acid) 10 x 150  3 700/150
/150
GS  C    WWWW 20 226-176
Silica Gel (Mercuric Cyanide) 6 x 110  2 300/150 GS  B    WWW 20 226-165A
Silica Gel (o-phenylenediamine) 8 x 110  2 520/260 GS  B    WWW 50 226-191
Silica Gel (p-methoxyphenol) 8 x 150  2 1200/600 GS  C    WWW 10 226-70A
Silica Gel (silver nitrate)/glass fibre filter (sodium carbonate/glycerol) 16 to 8 x 85  2 200/200 GO  H    TTTWW 5 226-177
Silica Gel (sodium hydroxide) 7 x 70  2 150/75 GS  B    WWW 20 226-55
Silica Gel (specially cleaned) 7 x 110  2 400/200 GS  B    WWGW 50 226-10-03
Silica Gel (specially washed and baked)/Glass fibre filter
2 Tubes
7 x 110

7 x 110
 1

 1
600

600
GS  D    WGW

WGW
20 Sets 226-183
Silica Gel (sulphuric acid) 6 x 70  2 200/100 GS  A    WWW 50 226-10-06
Silica Gel (sulphuric acid) 6 x 70  2 150/75 GS  A    WWW 50 226-53
Silica Gel (sulphuric acid) 8 x 110  2 200/200 GS  B    WWW 50 226-42
Silica Gel treated (methyl p-tolylsulphoxide (MTSO)) 7 x 110  1 800 GS  B    WW 20 226-193-UC
Silica Gel treated (methyl p-tolylsulphoxide (MTSO) 8 x 110  2 800/200 GS  B    WGW 20 226-199-UC
Silica Gel with ultra-low background (2, 4-dinitrophenylhydrazine) - high purity silica 6 x 110  2 300/150 GS  B    WWW 20
100
226-119
226-119A
Silica Gel with ultra-low background (2, 4-dinitrophenylhydrazine) - high purity silica 7 x 110  2 300/150 GS  B    WWW 20 226-119-7
Silica Gel with ultra-low background (2, 4-dinitrophenylhydrazine) - high purity silica 10 x 110  2 800/200 GS  C    WWW 20 226-188
Silica Gel with ultra-low background (2, 4-dinitrophenylhydrazine) with built-in ozone scrubber - high purity silica 8 x 115  3 1500/300/150 GS  D    WWWW 20 226-120
Silica Gel/Charcoal (charcoal treated with sodium hydroxide) 10 x 210  3 750/1250/250 GS  D    WWRW 50 226-61
Silica Gel/Glass Fibre Filter (OVS) 13 to 8 x 75  2 520/260 GO  V    FFGT 10 226-99

Table Notes:

*  Limited shelf-life; contact SKC for more information.
  Limited shelf-life; refrigerator/freezer storage may be required. Contact SKC for more information.

Tube Ends:

GS: Glass Sealed
GO: Glass Open
SS: Stainless Steel Open

Protective Tube Covers:

A:  6 mm OD x 70 mm length
B:  8 mm OD x 110 mm length
C:  10 mm OD x 150 mm length
D:  10 mm OD x 220 mm length and shorter tubes
V:  OVS Tube Holder - Do not use an adjustable low flow holder
H:  Specifically for use with 226-142 and 226-177 sorbent tubes

Separators:

W: Glass Wool
G: Glass Fibre Filter
F: Foam
N: Nylon Ring
Q: Quartz Filter
R: Glass Spacer
S: Screen
T: PTFE Ring
