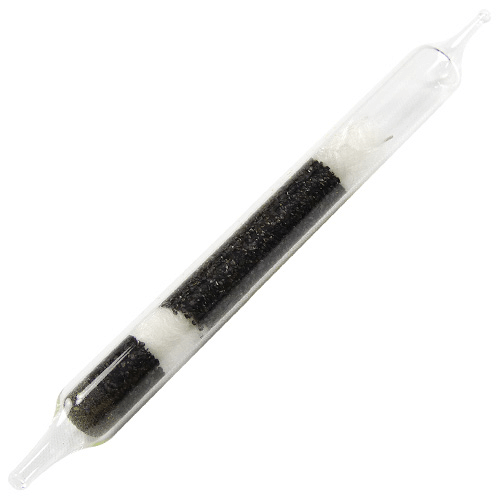

Chromosorb Sorbent Tubes

Chromosorb® is a porous polymer sorbent and is used to trap low-boiling hydrocarbons, benzene, labile compounds, and volatile oxygenated compounds. Chromosorb® 106 is a hydrophobic sorbent and the least polar polymer in the Chromosorb family and is functionally similar to Anasorb® 727.

Chromosorb® 102 is used to trap chlorine-containing pesticides.

Chromosorb Sorbent Tubes
Chromosorb Sorbent Tubes

To select a tube for a specific compound refer to the SKC Sampling Guides or use our SKC online Hazard Database

Sorbent
(coating)
Size (mm)
ODxLength
Sections Sorbent
(mg)
Ends Tube
Cover
Separators Pack
Size
Part Number
Chromosorb 102 8 x 110  2 100/50 GS  B    WWW 50 226-107
Chromosorb 102 8 x 110  2 200/100 GS  B    WWW 20 226-106A
Chromosorb 102 6 x 70  2 66/33 GS  A    WWW 50 226-49-102
Chromosorb 106 (purged) 1/4 x 3-1/2 in  1 350 SS  B    SWWS Each 226-358    §
Chromosorb 106 (unpurged) 1/4 x 3-1/2 in  1 350 SS  B    SWWS Each 226-358-UP    §
Chromosorb 106 10 x 150  2 600/300 GS  C    WWW 10 226-111A
Chromosorb 106 7 x 70  2 100/50 GS  B    WWW 50 226-110
Chromosorb 106 6 x 70  2 75/37 GS  A    WWW 50 226-49-106

Table Notes:

Tubes are chemically conditioned before shipping; use within 6 months or recondition. Restocking fee applies.
§ Each tube has a flow direction arrow and unique number.

Tube Ends:

GS:  Glass Sealed
GO:  Glass Open
SS:   Stainless Steel Open

Protective Tube Covers:

A:  6 mm OD x 70 mm length
B:  8 mm OD x 110 mm length
C:  10 mm OD x 150 mm length
D:  10 mm OD x 220 mm length and shorter tubes
P:   Low-volume PUF Tube Holder - Do not use an adjustable low flow holder
V:  OVS Tube Holder - Do not use an adjustable low flow holder

Separators:

W:  Glass Wool
G:  Glass Fibre Filter
F:   Foam
N:   Nylon Ring
Q:   Quartz Filter
R:   Glass Spacer
S:   Screen
T:   PTFE Ring
