AirChek CONNECT Pump

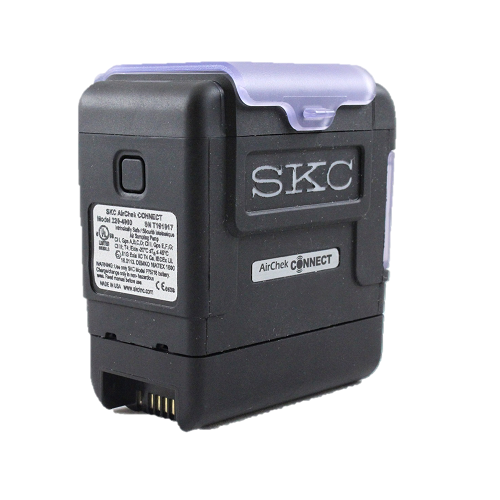

The SKC AirChek CONNECT is a Bluetooth-connected, lightweight, quiet sample pump that is simple to use with its intuitive touch screen operation.

AirChek Connect - Bluetooth connected touch screen sample pump

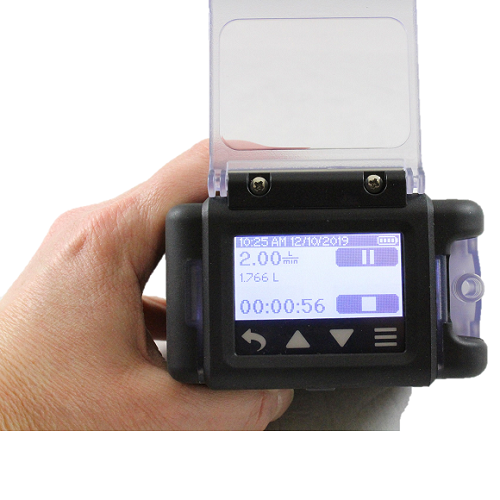

Touch screen for intuitive operation
Over 40 hours run time from a s single charge
  •
  • Compact, lightweight design
  • Ultra-quiet
  • Extended flow range, 5 to 5000 ml/min, suitable for dust sampling and vapour sampling
  • High back pressure compensation- up to 50 inches water at 2 L/min
  • Powerful Li-ion battery for long run times - over 40 hours
  • Bluetooth low energy connectivity for pump operation and monitoring using the SmartWave app
  • Patented* isothermal internal flow sensor
  • Flow fault and auto-restart
  • Large LCD with protective screen cover and screen lock-out feature
  • Displays elapsed time
  • Highly visible pump run and fault status LEDs
  • Tough non-slip anti-static case
  • UL/ATEX approved
  • DataTrac® Pro PC software for easy pump and data management

* US Patent No. 5,892,160

The AirChek CONNECT is also available in basic, dust, vapour/gas, and combined dust and vapour kits.

Specifications
Flow System
  • Flow range: 1000 to 5000 ml/min, 5-500 ml/min with low flow adaptor
  • Constant flow compensation provides constant flow within ±5% for accurate air volume
  • Flow fault appears if flow is restricted or blocked
  • Auto-restart is attempted after flow fault

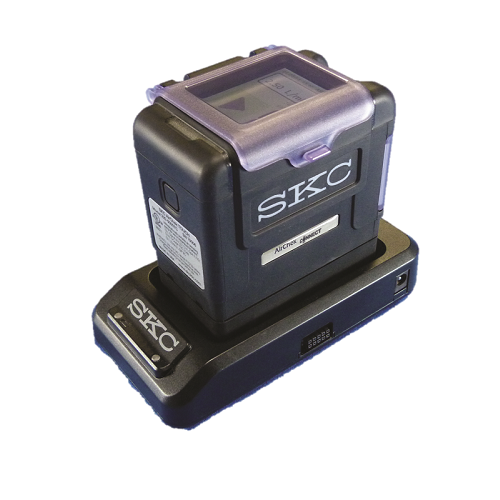

Power Supply
  • Removable, rechargeable Li-ion battery pack provides 40 hours minimum run time at 2000 ml/min, 15 hours at 5000 ml/min, and up to 50 inches water back pressure
  • Charging Time: Approximately 3 hours, depending on battery capacity and level of discharge
  • On screen battery status display
  • Link up to 5 charging cradles using one power supply
  • Indefinite run time from charging cradle
Display
  • Displays elapsed sampling time
  • Monochrome with locking/security option
Temperature Range
  • Operating: 0 to 40°C (32 to 104°F)
  • Charging: 0 to 45°C (32 to 113°F)
  • Storage: -20 to 45°C (-4 to 113°F)
Case
  • Recessed connector for 1/4" ID tubing
  • Durable polycarbonate case
  • Rubberised anti-static overmoulding
  • Large belt clip
Certification
  • Intrinsic safety when used with SKC battery pack model P75718:
  • UL Class I, Groups A, B, C and D;Class II, Groups E, F, and G;Class III, T4; Class I, Zone 0, AExia IIC T4 Ga; Exia IIC T4 Ga; -20°C ≤ Ta ≤ 45°C; Ex II 1G Exia IIC T4 Ga; IECEx UL 19.0100; DEMKO 19ATEX 2288; UL22UKEX2351; CE 0539; UKCA 0843
  • RoHS compliant
  • Designed to meet ISO 13137:2013
Tubing
  • 1/4" ID
Dimensions
  • 10.4 x 9.4 x 7.1 cm (4.1 x 3.7 x 2.8")
Weight
  • 550 g (19.4 oz)
AirChek CONNECT Pump
Description Part Number
AirChek CONNECT Pump with Li-Ion battery pack, instruction manual and mini screwdriver kit

Requires charging cradle and power supply; see kits or cradles below

220-4000
AirChek CONNECT Pump Kits
Description Part Number
AirChek CONNECT Basic Kit includes:

AirChek CONNECT Pump with Li-Ion battery pack and mini screwdriver kit, Charging Cradle, power supply with cord, instruction manual and 1 m length Tygon tubing in a durable carry case

220-4000K
AirChek CONNECT 5-Pump Basic Kit includes:

5 AirChek CONNECT Pump with Li-Ion battery pack and mini screwdriver kit, 5 Standard Charging Cradles, power supply with cord, instruction manuals, 5 x 1 m lengths of Tygon tubing and 3 Step-by-Step Guides in a durable carry case

220-4000K5

AirChek CONNECT Single Pump Dust Sampling Kit includes:

AirChek CONNECT Pump with Li-Ion battery pack and mini screwdriver kit, Charging Cradle, power supply with cord, instruction manual, plastic IOM Multidust Sampler, 5 plastic IOM Multidust cassettes, Calidaptor, 1 m length of Tygon tubing and Step-by-Step Guide in a durable carry case

220-4000KP
AirChek CONNECT 5-Pump Dust Sampling Kit includes:

5 AirChek CONNECT Pump with Li-Ion battery pack and mini screwdriver kit, 5 Standard Charging Cradles, power supply with cord, instruction manuals, 5 plastic IOM Multidust Sampler, 15 plastic IOM Multidust cassettes, Calidaptor, 5 x 1 m lengths of Tygon tubing and 3 Step-by-Step Guides in a durable carry case

220-4000K5P
AirChek CONNECT Single Pump Vapour Sampling Kit includes:

AirChek CONNECT Pump with Li-Ion battery pack and mini screwdriver kit, Charging Cradle, power supply with cord, instruction manual, All-In-One Adjustable Tube Holder, tube cover, tube breaker, 1 m length of Tygon tubing and Step-by-Step Guide in a durable carry case

220-4000KV
AirChek CONNECT 5-Pump Vapour Sampling Kit includes:

5 AirChek CONNECT Pump with Li-Ion battery pack and mini screwdriver kit, 5 Standard Charging Cradles, power supply with cord, instruction manuals, 5 All-In-One Adjustable Tube Holders, 5 tube covers, tube breaker, 5 x 1 m lengths of Tygon tubing and 3 Step-by-Step Guides in a durable carry case

220-4000K5V
AirChek CONNECT Single Pump Combined Sampling Kit includes:

AirChek CONNECT Pump with Li-Ion battery pack and mini screwdriver kit, Charging Cradle, power supply with cord, instruction manual, plastic IOM Multidust Sampler, 5 plastic IOM Multidust cassettes, Calidaptor, All-In-One Adjustable Tube Holder, tube cover, tube breaker, 1 m length of Tygon tubing and Step-by-Step Guide in a durable carry case

220-4000KC
AirChek CONNECT 5-Pump Combined Sampling Kit includes:

5 AirChek CONNECT Pump with Li-Ion battery pack and mini screwdriver kit, 5 Standard Charging Cradles, power supply with cord, instruction manuals, 5 plastic IOM Multidust Sampler, 15 plastic IOM Multidust cassettes, Calidaptor, 5 All-In-One Adjustable Tube Holders, 5 tube covers, tube breaker, 5 x 1 m lengths of Tygon tubing and 3 Step-by-Step Guides in a durable carry case

220-4000K5C
AirChek CONNECT Pump Accessories
Description Part Number
Standard Charging Cradle, requires power supply, see below 220-800  220-800 Standard Charging Cradle for AirChek Touch pump (requires power supply)
Single Cradle Power Supply (100-240V), for use with one charging cradle 220-600  220-600 Single Cradle Power Supply for AirChek Touch pump, for use with one charging cradle
Multi Cradle Power Supply (100-240V), for use with 2 to 5 charging cradles 220-700  220-700 Multi Cradle Power Supply for AirChek Touch pump, for use with 2 to 5 charging cradles
chek-mate flowmeter, 500-5000 ml/min (recommended)

(Other Calibrators available , see Calibration)
375-0550  375-0550 chek-mate flowmeter, 500-5000 ml/min
Black Nylon Pump Case with adjustable waist belt and shoulder strap 224-911  224-911 Black Nylon Pump Case for AirChek Touch pump, with adjustable waist belt and shoulder strap
Single Pump Case with foam cutouts for charger and accessories, and useful pockets for manuals, tubing, etc (LxWxH: 37.9 x 23.4 x 10.0 cm) 224-98A  224-98A Single Pump Case for AirChek Touch pump, with foam cutouts for charger and accessories, and useful pockets for manuals, tubing, etc
Five Pump Case with foam cutouts for charger and accessories, and useful pockets for manuals, tubing, etc (LxWxH 48.0 x 35.5 x 18.0 cm) 224-97C  224-97C Five Pump Case for AirChek Touch pumps, with foam cutouts for charger and accessories, and useful pockets for manuals, tubing, etc
Hard-Sided Single Pump Case which is watertight, airtight, dustproof and crushproof (LxWxH: 33.9 x 29.5 x 15.2 cm) 224-901  224-901 Pelican Hard-Sided Single Pump Case for AirChek Touch pump, which is watertight, airtight, dustproof and crushproof
Hard-Sided Five Pump Case which is watertight, airtight, dustproof and crushproof. It has wheels for easy transport and a retractable handle (LxWxH 55.9 x 35.1 x 22.9 cm). 224-914  224-914 Pelican Hard-Sided Five Pump Case for AirChek Touch pump, which is watertight, airtight, dustproof and crushproof
Waist belt, extends up to 122 cm (48 inches). 224-12  224-12 Waist belt for holding sample pump, extends up to 122 cm (48 inches).
Low Flow (5 to 500 ml/min) Kit includes All-in-One Adjustable tube holder and Type A protective tube cover 210-500  210-500 Low Flow (5 to 500 ml/min) Kit includes All-in-One Adjustable tube holder and Type A protective tube cover
USB Bluetooth® Adaptor (required for free software download and use of DataTrac Pro® PC software*) 877-94  877-94 Pocket Pump TOUCH USB Bluetooth® Adaptor. (required for free software download and use of DataTrac Pro software)
Replacement Battery Pack, Li-Ion P75718  P75718 Replacement Li-Ion Battery for AirChek ESSENTIAL, ESSENTIAL+, CONNECT and TOUCH
Single Impinger Holder, suitable for glass impingers only, for 1 impinger or 1 trap. Stainless steel. For use with AirChek Essential+/Connect/Touch series pumps 225-20-05 225-02-05 Single Impinger Holder, suitable for glass impingers only, for 1 impinger or 1 trap. Stainless steel. For use with AirChek Essential+/Connect/Touch series pumps

DataTrac® Pro PC software is only available as a download

Standard Charging Cradle, requires power supply

220-800

Multi Cradle Power Supply (100-240V), for use with 2 to 5 charging cradles

220-700

chek-mate flowmeter, 500-5000 ml/min

375-0550

Black Nylon Pump Case with adjustable waist belt and shoulder strap

224-911

Pelican Hard-Sided Five Pump Case which is watertight, airtight, dustproof and crushproof

224-914

Waist belt, extends up to 122 cm

224-12

USB Bluetooth® Adaptor (required for free software download and use of DataTrac Pro® PC software)

877-94

Replacement Battery Pack, Li-Ion

P75718

Single Impinger Holder, suitable for glass impingers only,

225-02-05

SmartWave App

What can the SKC SmartWave App do for me?

- Check in-range AirChek® Connect and Pocket Pump TOUCH status
- Monitor run time parameters such as run time, flow rate/pressure, fault, inlet pressure, and atmospheric temperature and pressure
- Select constant flow or constant pressure mode
- Set flow rate or pressure and operate sample runs
- Spot pump fault status
- Select display units and name pumps
- Use with the pump’s Secure Lock feature enabled to prevent unauthorized access to pump

SmartWave App - set, operate and monitor your Pocket Pump Touch Pump from your mobile    ios smartwave app ios qr     andriod smartwave app qr

AirChek® Connect and Pocket Pump TOUCH
SmartWave App



Smartwave App for IOS



Smartwave App for Android
