IFV Pro Sampler

The SKC IFV (Inhalable Fraction and Vapour) Pro Sampler is used for simultaneously collecting mixed-phase contaminants such as pesticides, polyaromatic hydrocarbons (PAHs), inorganic acids, and explosives. Sampling mixed-phase contaminants is challenging because the vapour and aerosol distribution is constantly changing. IFV Pro overcomes the technical issues of competing models with its IOM-style inlet for true inhalable sampling, use of a 25 mm filter (instead of 13 mm filter) for lower back pressure, and use at 1 L/min to provide lower limits of detection.

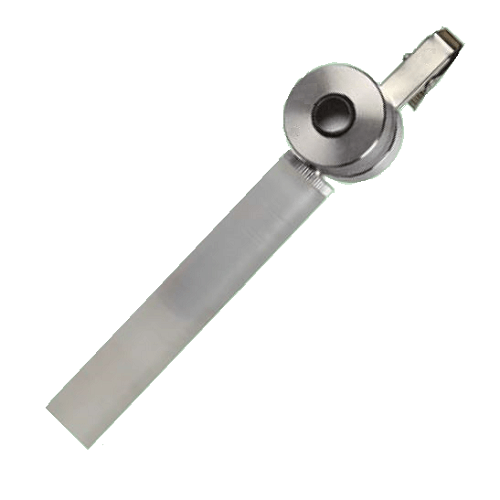

IFV Pro Sampler

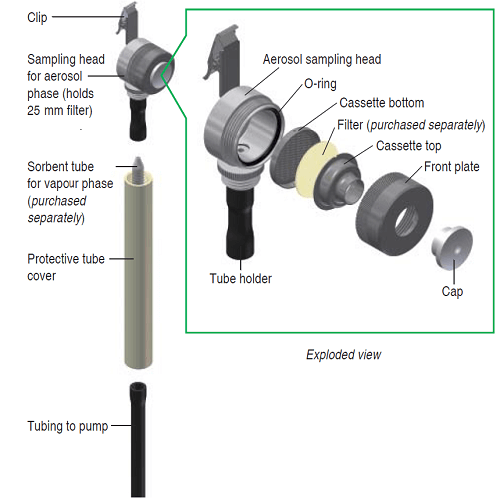

IFV Pro Sampler - Exploded

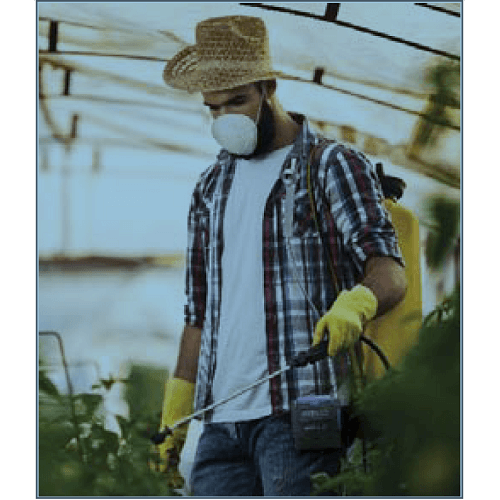

IFV Pro Sampling Train

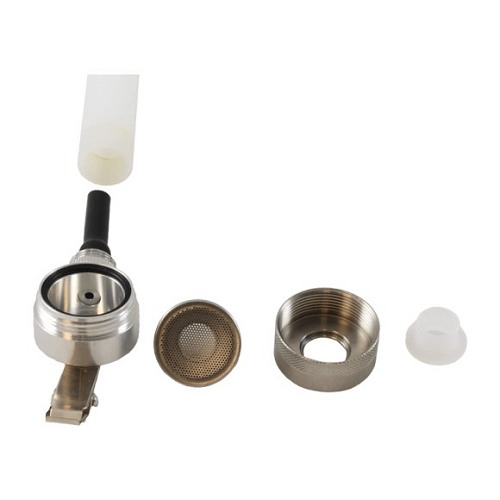

IFV Pro Sampler Component Parts

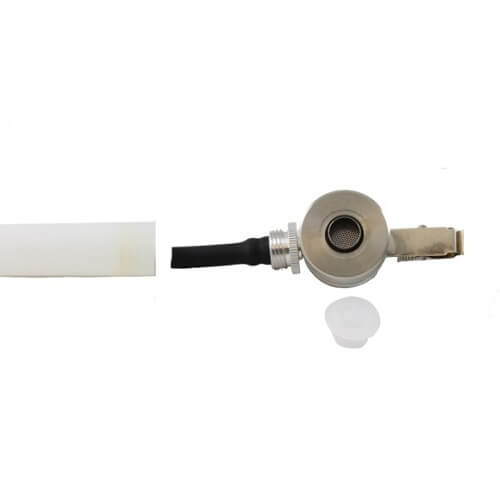

IFV Pro Sampler with and Cap
  • True inhalable fraction and vapour sampling simultaneously
    • Collects aerosol phase on a 25 mm filter using IOM-style inlet
    • Collects vapour phase in a 8 mm OD x 110 mm length sorbent tube
    • Applications and media are shown under the Sorbent Selection Guide and also in the Datasheet below
  • IOM-style inlet sized for 1 L/min flow for true inhalable sampling
  • Recommended 1 L/min flow rate allows for effective collection of both contaminant phases
  • Meets European Standard EN 13936 by collecting the total of vapour and aerosol exposures

ACGIH IFV Designation

ACGIH has assigned a TLV with Inhalable Fraction and Vapour (IFV) designation to over 50 compounds that exert sufficient vapour pressure such that the contaminant may be present in both particle and vapour phases, with each phase contributing a significant portion of the dose. IFV Pro allows for efficient sampling of compounds with this designation (see datasheet or selection guide below), or compounds found in mixed phases due to work activities or processes.

Specifications
Flow Rate    1 L/min
50% Cut-point    100μm at 1 L/min inhalable fraction
Material    - Sampling Head: Stainless steel front plate and filter cassette with 10.6mm dia. inlet, aluminium clip, housing and outlet
- Tube Holder: Black rubber
- Protective Tube Cover: Plastic
Maximum Operating Temperature    200°C (392°F), suitable for autoclaving and solvent washing
Filters    25 mm glass fibre or quartz filter; or coated filter
Sorbent Tubes    Dependent on compound of interest (see table or datasheet below)

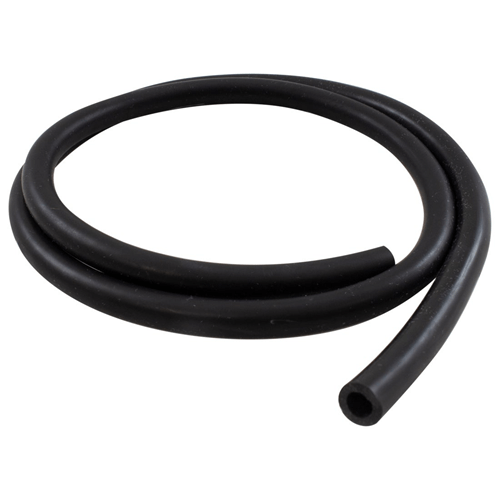

Tubing    1/4 inch (6.25mm) ID
Dimensions    21.6 x 3.17 cm (8.5 x 1.2 in)
Weight    68 g (2.4oz)
Analysis    Gravimetric and chemical
IFV Pro Filter and Sorbent Selection Guide
Compound Suggested Filter Sorbent Tube
Acrylamide 225-702 226-10-04
Alachlor 225-702 226-30-06
Aldrin 225-702 226-30-06
Azinphos-methyl 225-702 226-30-06
Butylated hydroxytoluene 225-702 226-211
Carbaryl 225-702 226-30-06
Carbofuran 225-702 226-30-06
Chlorpyrifos 225-702 226-30-06
Clopidol 225-702 226-30-06
Coumaphos 225-702 226-30-06
Cresol, all isomers 225-702 226-211
Demeton 225-702 226-30-06
Demeton S-methyl 225-702 226-30-06
Diazinon 225-702 226-30-06
Dibutyl phosphaten 225-702 226-30-06
Dichlorvos 225-702 226-30-06
Dicrotophos 225-702 226-30-06
Dieldrin 225-702 226-30-06
Diesel fuel as total hydrocarbons 225-702 226-09
Diethanolamine 225-702 226-14
Dioxathion 225-702 226-30-06
Disulfoton 225-702 226-30-06
Endosulfan 225-702 226-30-06
2-Ethylhexanoic acid 225-702 226-10-04
Fenamiphos 225-702 226-30-06
Fensulfothion 225-702 226-30-06
Fenthion 225-702 226-30-06
Fonofos 225-702 226-30-06
Glyoxal 225-9036 226-119-7
Malathion 225-702 226-30-06
Maleic anhydride 225-9028 226-213
Methomyl 225-702 226-30-06
Methyl demeton 225-702 226-30-06
Methyl parathion 225-702 226-30-06
Mevinphos 225-702 226-30-06
Monochloroacetic acid 225-702 226-10-04
Monocrotophos 225-702 226-30-06
Naled 225-702 226-30-06
o-Phthalodinitrile 225-702 226-83
Parathion 225-702 226-30-06
Pentachlorophenol 225-702 226-211
Phorate 225-702 226-30-06
Propoxur 225-702 226-30-06
Ronnel 225-702 226-30-06
Sulfotepp 225-702 226-30-06
Sulprofos 225-702 226-30-06
Temephos 225-702 226-30-06
1,1,2,2-Tetrabromoethane 225-702 226-10-04
Tetraethylpyrophosphate(TEPP) 225-702 226-106A
Thiram 225-702 226-30-06
Toluene-2,4-diisocyanate 225-9035 N/A
Toluene-2,6-diisocyanate 225-9035 N/A
Xylidene isomers 225-702 226-10-04
IFV Pro Sampler and Kit
Description Pack Size Part Number
IFV Pro Sampler, includes:

sampling head (aerosol sampler body, cassette, and front plate), protective tube cover, cassette cap, cassette transport container, and black rubber tubing
Requires 25 mm filter and sorbent tube

Each 225-49

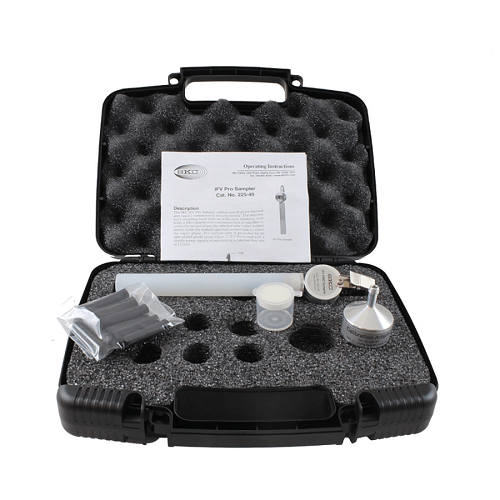

IFV Pro Sampler Kit, includes sampler as above, and

calibration adaptor, and case
Requires 25 mm filter and sorbent tube

Each 225-49K
Accessories
Description Pack Size Part Number

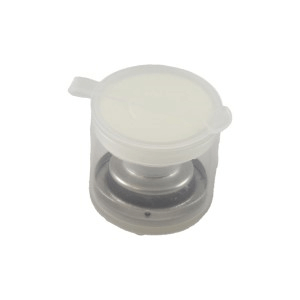

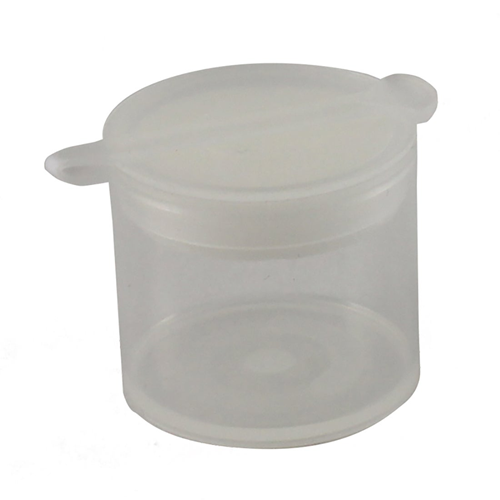

Filter Cassette, stainless steel with cap and transport container for 25 mm filter Each 225-4903  Filter Cassette, stainless steel with cap and transport container
Calibration Adaptor Each 225-361  225-361 Calibration Adaptor for IFV Pro Sampler
Filter Cassette, stainless steel with cap and transport container for 25 mm filter

225-4903

Calibration Adaptor

225-361
