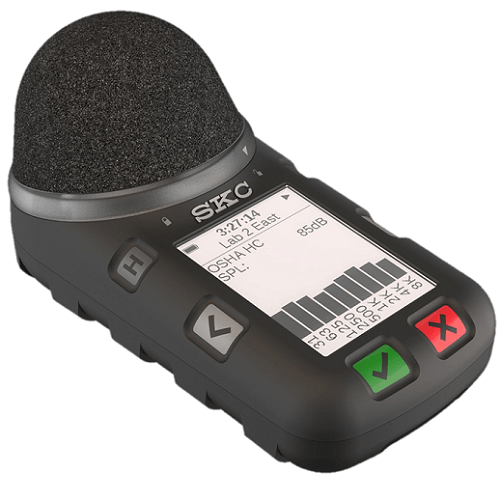

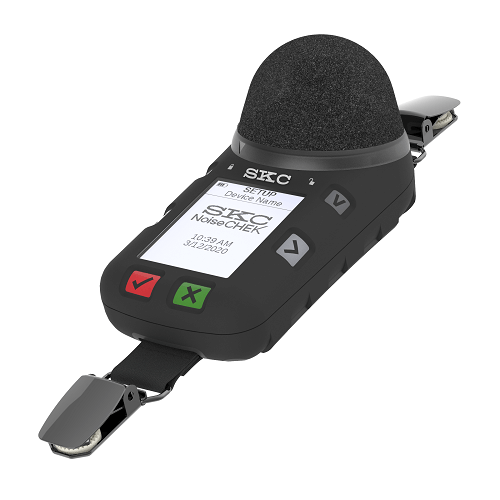

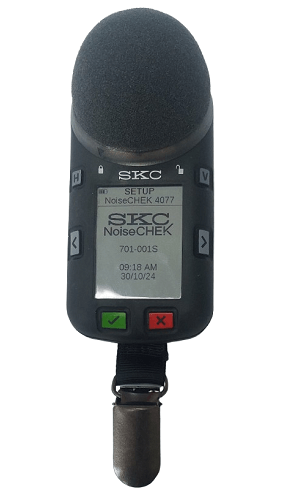

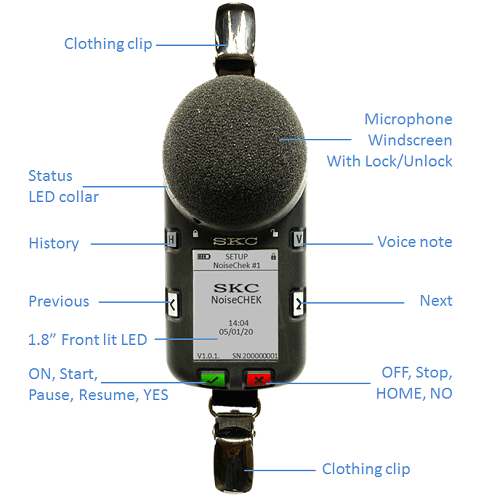

SKC NoiseCHEK Dosimeter
- Measures 80 to 140dB
- Simultaneous A and C weighting
- Four programmable virtual dosimeters
- Large configurable display screen
- Small and light for easy worker acceptance
- Up to 180 hours of datalogging and time history
- Intrinsically Safe
- Device lockout for security
- Over 40 hours run rime from a fully charged battery
- Easy automatic calibration using the SKC AcoustiCHEK calibrator
- Locking windshield

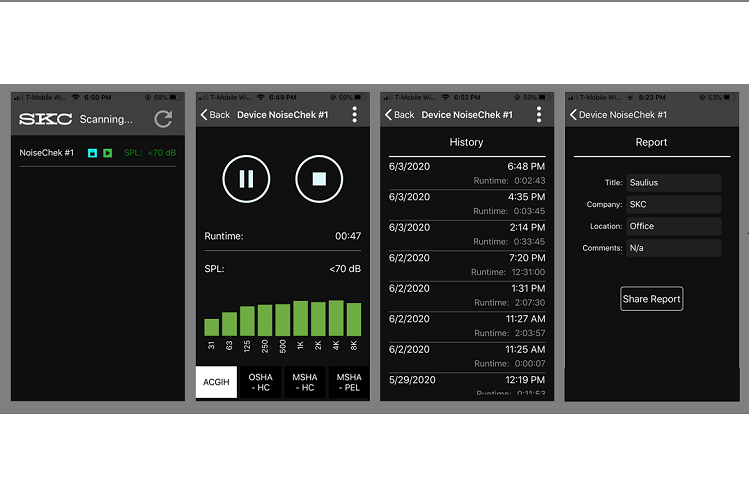

- Bluetooth connectivity (optional) with mobile devices using the SmartWave dB App
- DataTrac dB software for dosemeter setup and data management
- Secure magnetic charging docks
Specifications
td>
| Measuring Range | 80-140dB, peak up to 143dB | |
| Weighting | A, C, Z, Peak C or Z weighted | |
| Response Time | Fast and Slow | |
| Standards | Meets ANSI S1.25, IEC61252 (Class 2) | |
| Operating Time | 40+ hours | |
| Battery | Li-Ion | |
| Charge Time | 4-6 hours | |
| Connectivity | Low energy Bluetooth, USB (via charging dock) | |
| Ingress Protection | IP65 | |
| Certification | Intrinsic Safety: (SKC Cat. No. 701-001S & 701-001NBS) Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III, T4; Class I, Zone 0, AEx ia IIC T4 Ga; Ex ia IIC T4 Ga; -20°C ≤ Ta ≤ 45°C Ex II 1G Ex ia IIC T4 Ga IECEx UL 21.0026 DEMKO 21ATEX 2537 UL 22UKEX 2456 CE 0539 UKCA 0843 |
|
| Dimensions | 9.9 x 4.8 x 5.1 cm (3.9 x 1.9 x 2 in) | |
| Weight | 117g (4.1 oz) |
NoiseCHEK Dosimeter
| Description | Pack Size | Part Number |
| NoiseCHEK Dosimeter, requires Charging Dock | Each | 701-001 |
NoiseCHEK Dosimeter Kits
| Description | Part Number |

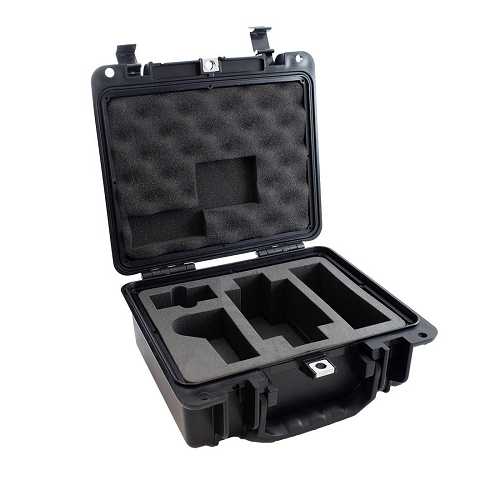

| NoiseCHEK Dosimeter, Intrinsically Safe model (with Bluetooth connectivity), 1-unit charging dock with power supply, replacement windshield, USB cable, USB Drive with manual, protective carry case | 701-001S |
| NoiseCHEK Dosimeter, Intrinsically Safe model (no Bluetooth connectivity), 1-unit charging dock with power supply, replacement windshield, USB cable, USB Drive with manual, protective carry case | 701-001NBS |
| NoiseCHEK Dosimeter, Intrinsically Safe model (with Bluetooth connectivity), 1-pack Kit, includes Dosimeters, 1-unit charging dock with power supply, replacement windshield, USB cable, USB Drive with manual, protective carry case | 701-001KS |
| NoiseCHEK Dosimeter Kit, Intrinsically Safe model (no Bluetooth connectivity), 1-pack Kit, includes Dosimeters, 1-unit charging dock with power supply, USB cable, USB drive with manual, protective carry case | 701-001KNBS |

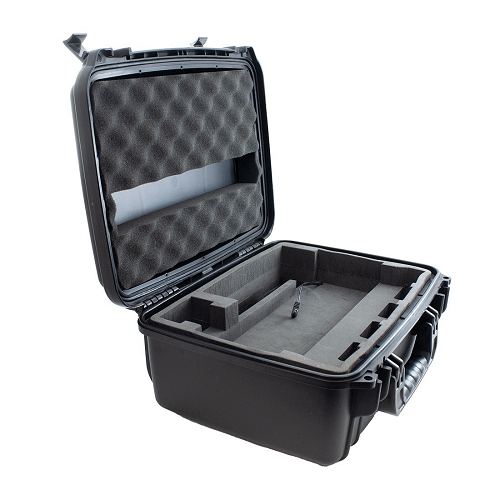

| NoiseCHEK Dosimeter 5-pack Kit, Intrinsically Safe model (with Bluetooth connectivity), 5-pack Kit, includes Dosimeters x 5, 5-unit charging dock with power supply, replacement windshield, USB cable, USB Drive with manual, protective carry case | 701-001K5S |
| NoiseCHEK Dosimeter 5-pack Kit, Intrinsically Safe model (no Bluetooth connectivity), 5-pack Kit, includes Dosimeters x 5, 5-unit charging dock with power supply, USB cable, USB drive with manual, protective charging carry case | 701-001K5NBS |
Other NoiseCHEK models are available including non Intrinsically Safe models. Please contact SKC for more information.
Accessories
| Description | Pack Size | Part Number | |

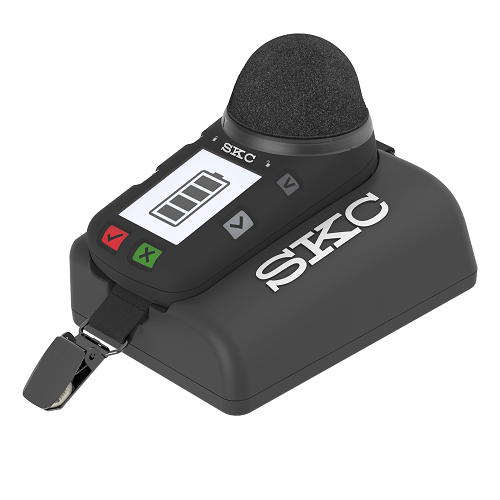

| 1-unit Charging Dock and PC Connection, includes power supply | Each | 701-002 |  |
| 5-unit Charging Dock and PC Connection, includes power supply | Each | 701-003 | |
| AcoustiCHEK Calibrator, includes AA batteries | Each | 703-002 |  |

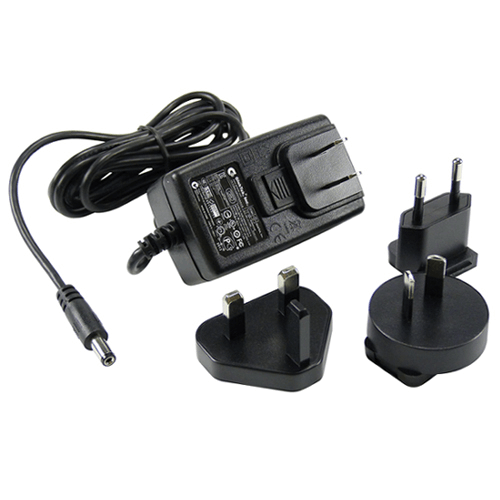

| Replacement power supply with interchangeable plugs, 100-240V" | Each | 220-600 |  |

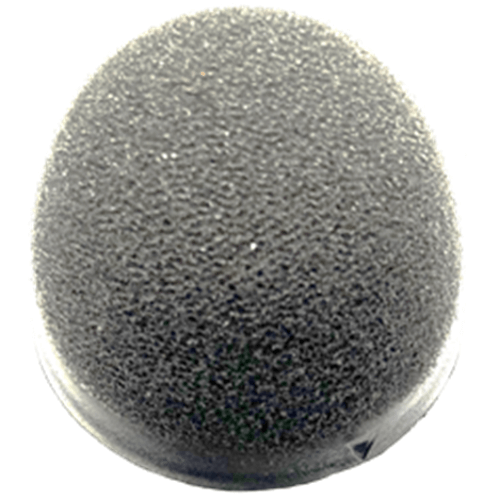

| Replacement Windshield, locking | Each | 701-004 |  |
| NoiseCHEK Replacement Microphone, ½ inch | Each | 701-005 |  |
| Replacement USB Cable for NoiseCHEK | Each | P71453 |  |
Documentation
 |
 |
|
|
NoiseCHEK Manual |
DataTrac dB Software Manual |
