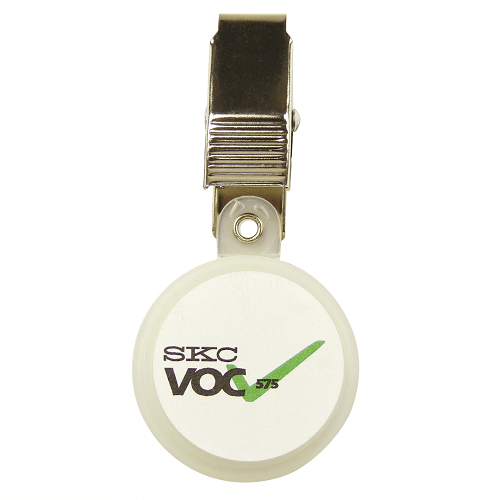

Organic Vapour Passive Samplers

SKC has scientifically validated the sampling rate of the VOC Chek 575 passive samplers along with other critical sampling parameters to meet OSHA/ASTM/ANSI requirements. SKC VOC Chek 575 Passive Samplers are identified as a viable alternative to active sampling in several OSHA methods.

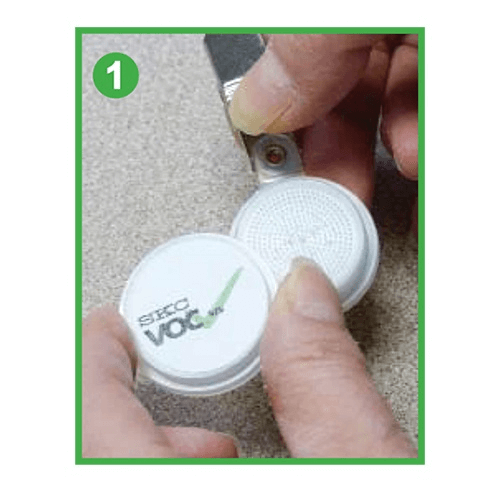

Step 1 - Remove the
front cap

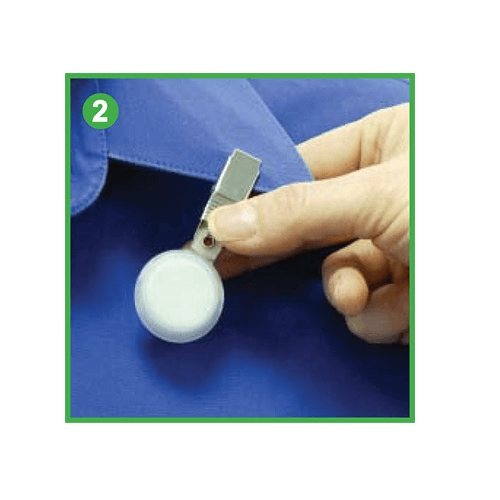

Step - 2 Clip the sampler
within the breathing zone

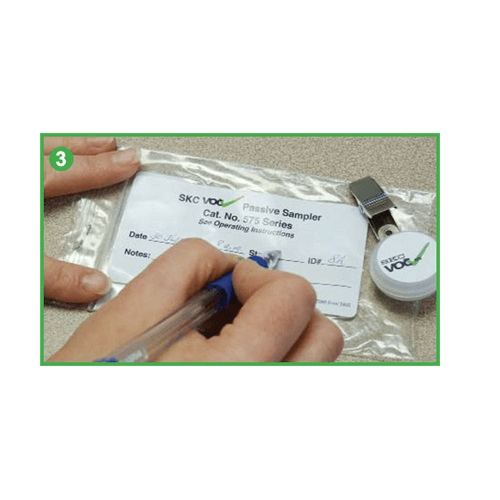

Step - 3 After use fit
the cap and record
the information

Highly accurate and reliable
- Proven performers in the laboratory and in the field
- Extensively tested and documented
Decrease sampling costs
- Collect most compounds with one sampler for up to a full 8 hour shift eliminating multiple trips to the worksite
- One sampler + one analysis = money saved
- SKC sorbents have a larger surface area for higher capacities
- Economical solvent desorption and GC analysis
Variety of samplers available
- Only SKC offers a choice of sorbents to better target specific contaminants
- Specific samplers available for styrene and methanol
- Sampling rates for over 300 compounds
- Proper sorbent selection means no reverse diffusion
Meet ASTM D6246-08 and ANSI/ISEA 104-1998 (r 2009) standards
So easy to use - no pump or training required

Review the Passive Sampling Guide to identify the most appropriate sampler.

VOC Passive Samplers

Description	Sorbent (amount)	Pack Size	Part Number
Passive Sampler for Organic Vapour	Anasorb CSC (350 mg)	5 25 100 500	575-001 575-001A 575-001B 575-001C
Passive Sampler for Organic Vapour	Anasorb^® 747 (500 mg)	5 25 100 500	575-002 575-002A 575-002B 575-002C
Passive Sampler for Ethylene Oxide	Anasorb^® 747 treated with hydrobromic acid, (500 mg)	5 25	575-005 575-005A
Passive Sampler for Styrene	Anasorb^® 747 treated with tert-butyl catechol (500 mg)	5	575-006
Passive Sampler for Methanol	Anasorb^® 747 (500 mg)	5	575-007

Active/Passive Method Cross Reference

US OSHA Methods

Compound	Active Method	Tube Part No.	Passive Method	Sampler Part No.
Benzene	OSHA 1005	226-01	OSHA 1005	575-002
Butyl acetates	OSHA 1009	226-01	OSHA 1009	575-002
MEK/MIBK	OSHA 1004 (modified)	226-81A	OSHA 1004	575-002
Styrene	OSHA 89	226-73	OSHA 1014	575-006
Toluene	OSHA 111	226-81A or 226-01	OSHA 111	575-002
Trichloroethylene/tetrachloroethylene	OSHA 1001	226-01	OSHA 1001	575-002
Trimethylbenzene	OSHA 1020	226-01	OSHA 1020	575-002
Xylenes/ethylbenzene	OSHA 1002	226-01	OSHA 1002	575-002

UK HSE Methods

Compound	Active Method	Tube Part No.	Passive Method	Sampler Part No.
Benzene	MDHS 104	226-01	MDHS 88	575-001
Butyl acetates	MDHS 104	226-01	MDHS 88	575-001
MEK/MIBK	MDHS 104	226-01	MDHS 88	575-002
Styrene	MDHS 104	226-01	MDHS 88	575-006
Toluene	MDHS 104	226-01	MDHS 88	575-001
Trichloroethylene/tetrachloroethylene	MDHS 104	226-01	MDHS 88	575-001
Trimethylbenzene	MDHS 104	226-01	MDHS 88	575-001
Xylenes/ethylbenzene	MDHS 104	226-01	MDHS 88	575-001

Analysis Accessories

Desorption Efficiency (DE) tubes contain the same sorbent, and mass of sorbent, as found in their associated VOC Chek 575- Passive Sampler. The sorbent in these tubes is spiked and analyzed by the lab to calculate the desorption efficiency of the sorbent. The DE is used in the final calculation of concentration when analyzing the passive sampler. Tubes are provided to make it easier, and less wasteful, when determining DE.

Sampler	Pack Size	Desorption Efficiency Tube Part No.
575-001 Samplers	10	575-048
575-002 and 575-007 Samplers	10	575-049
575-005 Samplers	10	575-051
575-006 Samplers	10	575-052
