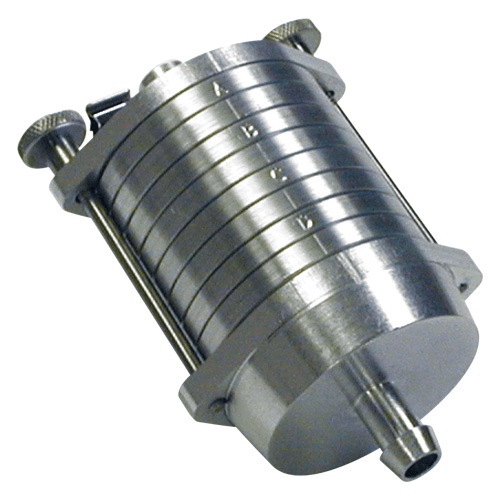

Sioutas Personal Cascade Impactor

The Sioutas Personal Cascade Impactor separates and collects airborne particles in five size ranges. When used with PTFE filters the Sioutas Impactor is highly efficient at collecting particles without the use of impaction grease or substrate coatings, and at retaining unstable compounds for size-fractionated chemical analysis. It is the only personal impactor that efficiently samples coarse, fine and ultrafine particles simultaneously. Particles above each cut-point are collected on 25 mm filter in the appropriate stage with particles below 0.25 µm collecting on the 37 mm after-filter (optional). Use the Sioutas Impactor with the Leland Legacy sample pump at 9 L/min to ensure precise particle separation at the specified cut-points.

Sioutas Personal Cascade Impactor

  •
  • Precise particle separation
    • Particle size cut-points: 2.5 µm, 1.0 µm, 0.5 µm and 0.25 µm
    • Maintains high collection efficiency even at high particle concentrations
  • Optimised at a 9 L/min flow rate with low pressure drop for 24 hour sampling
    • Improves analytical sensitivity
    • Minimises non-detectable samples
  • Preserves unstable compounds
    • Chemically inert collection substrate
    • No impaction grease to contaminate sample
  • Minimal particle bounce and internal wall losses
  • Suitable for indoor and outdoor sampling *
  • Size-fractionated samples can be analysed gravimetrically, chemically, and microscopically

Applications

  • Occupational hygiene studies
  • Indoor Air Quality (IAQ) studies
  • Air pollution studies
  • Inhalation toxicology and epidemiological studies
  • Aerosol research
  • Pharmaceutical studies
  • Outdoor ambient sampling *

* Requires special provisions, please see the Sioutas Cascade Impactor Instructions.
