Cassette and Filter Holders

SKC offer a range of filter holders and filter cassette holders.

Diameter (mm) Description Pack Size Part Number

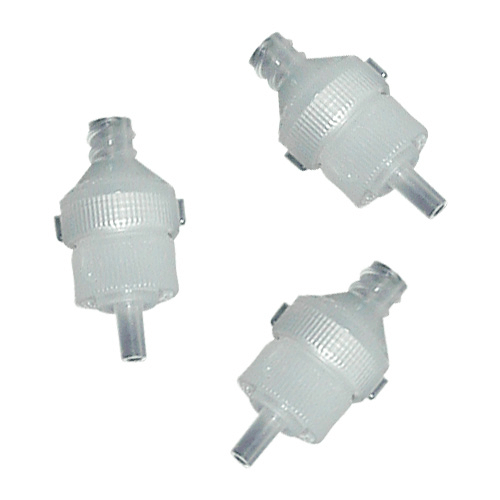

13 2-section, polypropylene, Swinnex® or Face Level Sampling Headset
  • Reusable
  • Autoclavable
  • Specified in NIOSH Method 5503 for PCBs

Replacement 13 mm diameter silicone gaskets
10






100
225-32






225-3201
 225-32 2-section, polypropylene 13 mm diameter Filter Holder 225-32 2-section, polypropylene 13 mm diameter Filter Holder

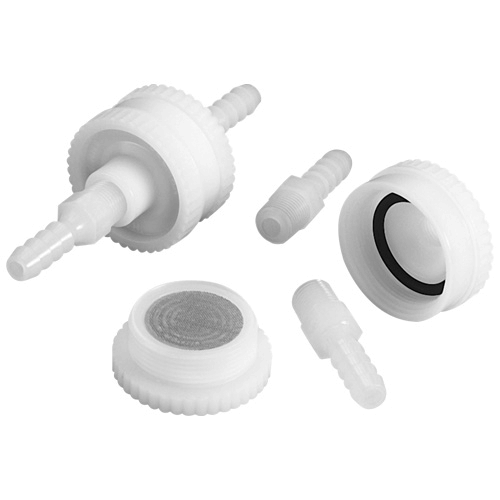

25 2-section, in-line, Delrin® (acetal resin) with stainless steel support screen
  • Broad chemical compatibility and strength
  • Useful for low pressure applications
6 225-1109  225-1109 2-section, in-line, Delrin Filter Holder, diameter 25mm 225-1109 2-section, in-line, Delrin Filter Holder, diameter 25mm

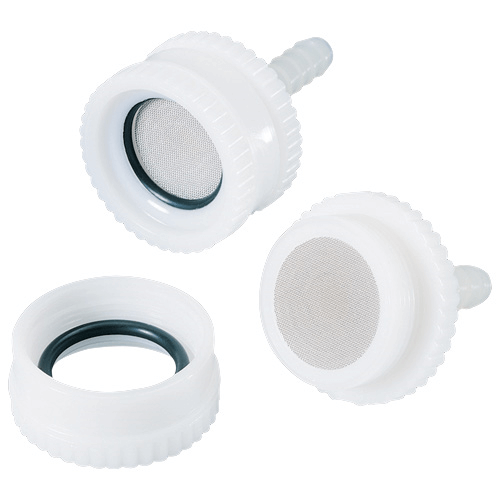

25 Open face, Delrin® (acetal resin) with stainless steel support screen
  • Lightweight and corrosion-resistant
  • Includes ¼ inch ID hose barb adaptor
6 225-1107  225-1107 Open face, Delrin Filter Holder, diameter 25mm 225-1107 Open face, Delrin Filter Holder, diameter 25mm
25 and 37 Filter Cassette Holder for 2 and 3 part cassettes, includes 0.9 m (3 ft) of ¼ inch Tygon tubing, collar clip, and a 25 mm adaptor ring. It is designed for attaching to a worker's collar and will accommodate:
  • Two or three-piece 37 mm cassette with or without a cyclone
  • 25 mm cassette with cowl
  • DPM Cassette with a GS-1 Cyclone
Each 225-1  225-1 Filter Cassette Holder for 2 and 3 part cassettes 25 or 37 mm diameter, and includes 0.9 m (3 ft) of ¼ inch Tygon tubing, collar clip, and a 25 mm adaptor ring 225-1 Filter Cassette Holder for 2 and 3 part cassettes 25 or 37 mm diameter, and includes 0.9 m (3 ft) of ¼ inch Tygon tubing, collar clip, and a 25 mm adaptor ring

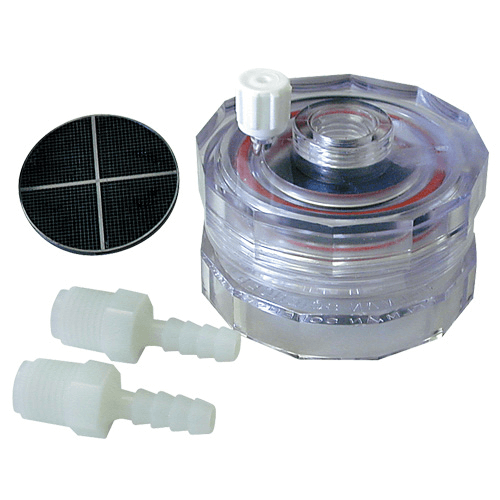

47 Polycarbonate, in-line, with support
  • Lightweight
  • Opens and closes easily without disturbing the filter
  • Autoclavable
Each 225-4702  225-4702 Polycarbonate, in-line, with support Filter Holder, diameter 47mm 225-4702 Polycarbonate, in-line, with support Filter Holder, diameter 47mm

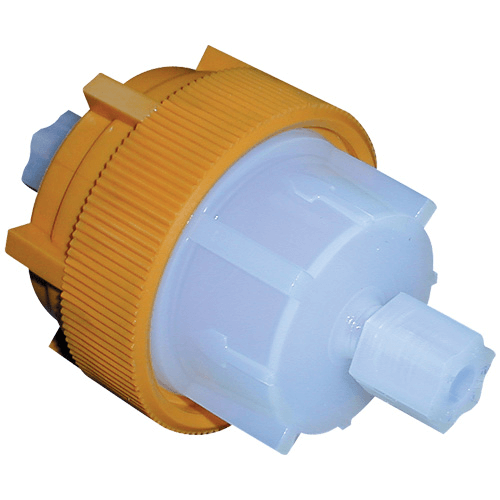

47 Savillex PFA with ¼ inch ferrule nuts and wrench set.
  • Replace filters without disconnecting lines
  • Operate at -200 to +260°C (-328 to +500°F)

For optimum seal, SKC recommends PTFE filters (alternative filter materials may result in leakage)
Each 225-1712  225-1712 Savillex PFA Filter Holder, diameter 47mm 225-1712 Savillex PFA Filter Holder, diameter 47mm

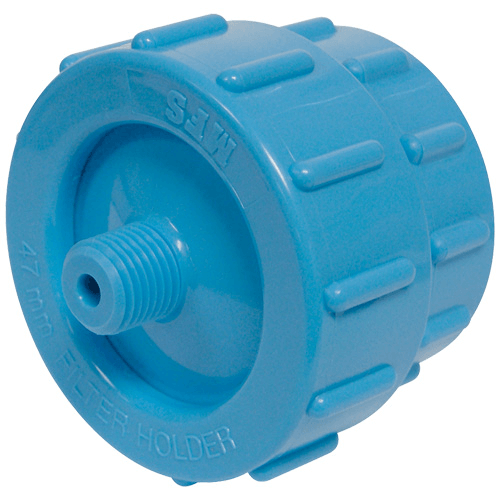

47 Polypropylene
  • Ideal for vacuum and pressure air sampling applications
  • Can be used with pressures up to 100 psi
Each 225-1147  225-1147 Polypropylene Filter Holder, diameter 47mm 225-1147 Polypropylene Filter Holder, diameter 47mm
Filter Holders

225-32

Filter Holders

225-1109

Filter Holders

225-1107

Filter Holders

225-1

Filter Holders

225-4702

Filter Holders

225-1712

Filter Holders

225-1147

Filter Holder Instructions



Swinnex Sampler Instructions

Filter Cassette Holder
(225-1) Instructions



Swinnex Sampler
(225-32) Instructions

Filter/Cassette Selection GuideFilter/Cassette Selection Guide
