HAZ-DUST DPM-7204

The Haz-Dust Real-Time Diesel Particulate Monitor Model DPM-7204 is a complete and personal portable system that allows true breathing zone measurements and comprehensive graph reporting. The product is designed for measuring diesel particulate matter for Industrial Hygiene and Environmental air investigations. The DPM-7204 is individually worn, and offers immediate determination and data storage of airborne diesel particulate concentrations. This is the only commercially available personal direct reading aerosol monitor, specifically designed and calibrated, for measuring occupational exposures of diesel particulate matter in the workplace with a flow compensated pump.

The inline 37mm filter cassette allows the user to concurrently collect filter samples for carbon analysis by NIOSH method 5040.

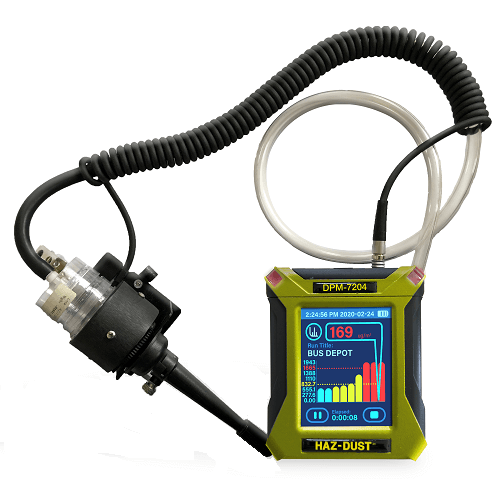

HAZ-DUST DPM-7204 Particulate Monitor with Cyclone
Specifications

The HAZ-DUST DPM-7204 optical particulate sensor operates on the principle of near-forward light scattering of infrared radiation. As the airborne particles enter the infrared beam, they scatter the light. The amount of light received by the photodetector is directly proportional to the aerosol concentration. Unique signal processing internally compensates for noise and drift. It immediately and continuously measures the concentration of airborne dust particles and displays the result in mg/m3.

Accuracy    ±10% to filter gravimetric SAE fine test dust
Sensing Range    0.001 to 500 mg/m3 or 1 to 500,000 µg/m3
Display Resolution    1 µg/m3 (0.001 mg/m3)
Particle Size Range    0.1 to 100 µm
Measurement Precision    ±0.02 mg/m3
Calibration    NIOSH Method 0600 gravimetric reference - NIST-traceable SAE fine test dust
Display     8.9 cm (3.5 in) colour with auto-dimming
Displayed Particle Concentration    Instantaneous, TWA, STEL, Minimum, Maximum
Sample Flow Rate    1 to 5 L/min (adjustable). Auto adjusts for sample head
Power    Rechargeable Li-Ion battery
Operating Time    ≥22 hours
Charging Time    3 hours, depending on battery state
Digital Output    Micro USB
Data Storage    43,200 data points
Temperature    Operating: 0 to +50°C (32 to 122°F)
Storage:   -20 to +70°C (-4 to 158°F)
Dimensions    Case:   8.9 x 5.7 x 12.1 cm (3.5 x 2.25 x 4.75 inches)
Sensor: 4.4 x 3.8 (1.75 x 1.5 inches)
Weight    517 g (1.14 lbs)
Applications
  •
  • Diesel Engine Surveys
  • Combustion Efficiency
  • Mining (not ATEX)
  • Transportation (i.e. publioc transport depots, logistics and freight)
  • Valuable Survey Tool for MSHA and NIOSH Compliance Program – Reviews or any air monitoring applications involving lung damaging diesel particulate matter
HAZ-DUST DPM-7204
Description Part Number
HAZ-DUST DPM-7204 Monitor Kit, includes:

monitor, GS-1 cyclone and adaptor, 37 mm filter cassette, open-faced sampling adapter, cassette adaptor for DPM cassette with impactor, flow adapter, zero accessory, battery charger, and DustComm Pro Software, in a hard carry case
(requires calibration with equipment sold separately, see accessories below)

770-750A
HAZ-DUST DPM-7204 Accessories
Description Part Number
Respirable inlet, GS-3 Cyclone 225-103  225-103 Respirable Impactor, GS-3 Cyclone, mounts on HAZ-DUST IV sensor
Replacement adaptor for Respirable inlet, required when using GS-3 or GS-1 Cyclone 770-313  770-313 Adaptor for Respirable Impactor, required when using GS-3 Cyclone
Calibration Standard, for verifying span and optical sensor performance 770-327  770-140 Calibration Standard, for verifying span and optical sensor performance
Inhalable IOM Sampling Head 225-70A  IOM Multidust Sampler and Cassette in conductive plastic
IOM Adaptor, for mounting IOM sampling head 770-4204  IOM Adaptor, for mounting IOM sampling head
Thoracic Impactor inlet 770-4107  770-4107 Thoracic Impactor inlet

DPM Cassette without Impactor; standard 3-piece clear styrene cassette loaded with 37 mm heat-treated R-100 quartz filter, support pad, banded, meets NIOSH 5040 specifications, Pack of 50.





225-401 *     225-401 Diesel Particulate Matter (DPM) Cyclone Cassette 37mm quartz filter without Impactor
DPM Cassette with 0.8 µm Impactor. Pack of 10. 225-317 *     225-317 Diesel Particulate Matter (DPM) Cyclone Cassette with 0.8 µm Impactor

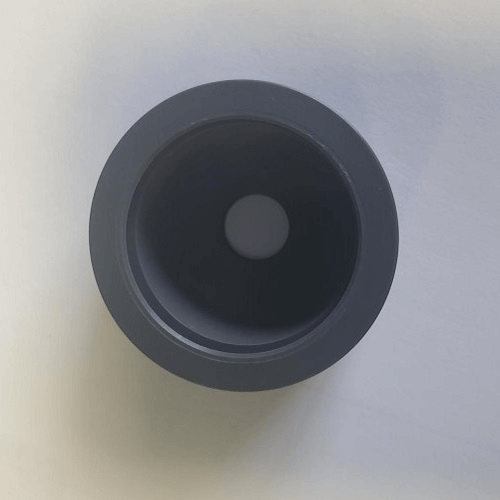

Replacement Adaptor for 225-317 DPM cassette 770-751  Adapter for 225-317 DPM cassette
Recommended chek-mate flowmeter, 500-5000 ml/min, for calibrating the Sampling Head

(Other Calibrators available , see Calibration)
375-0550  375-0550 chek-mate flowmeter, 500-5000 ml/min, for calibrating the Inhalable Sampling Head
Calibration Chamber, for calibrating and setting pump airflow when using GS-1 and GS-3 Cyclones 225-112  225-112 Calibration Chamber, for calibrating and setting pump airflow when using GS-3 Cyclone
Cleaning Kit, includes bulb, swabs and lens tissue (no air canister) 770-305B no image
DustComm Pro Software on USB Flash Drive 770-225  770-225 DustComm Pro Software on USB Flash Drive
Black protective pouch 770-7208  Black carry pouch for HD-7204, DPM-7204 and SM-7204
Replacement battery pack 770-7205  770-7205 Replacement battery pack for HD-7204 Particulate Monitor
