DataTrac Software for AirChek 3000 and Leland Legacy Pumps

The DataTrac® PC Software can be used with the AirChek 3000 pump and Leland Legacy pump, and enables:

  • The pump to be operated from the PC
  • Pump parameters to be set (useful if a number of pumps need setting to the same configuration)
  • Pump operation to be tested and monitored
  • Pump programmed for single or multiple runs
  • The pump sampling data to be downloaded for complete documentation of sampling history to create worker exposure profiles
  • Calibration information to be documented when used in conjunction with a CalChek-enabled pump
DataTrac Management Software for use with specific SKC pumps

DataTrac® is supplied on USB stick with a USB interface adaptor cable for the relevant pump or can be downloaded for the relevant pump.

DataTrac: Setting Pump Flow Rate

Simply set the pump flow rate by clicking on a preset flow and adjusting if necessary.

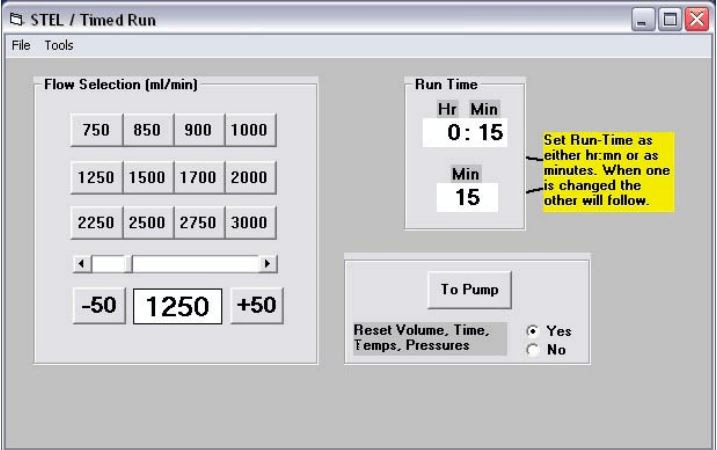

DataTrac Software - Example of the Set Flowrate Screen

DataTrac: Real Time Pump Monitor

Shows in real time the parameters and data about the pump. The pump can also be controlled to test its operation.

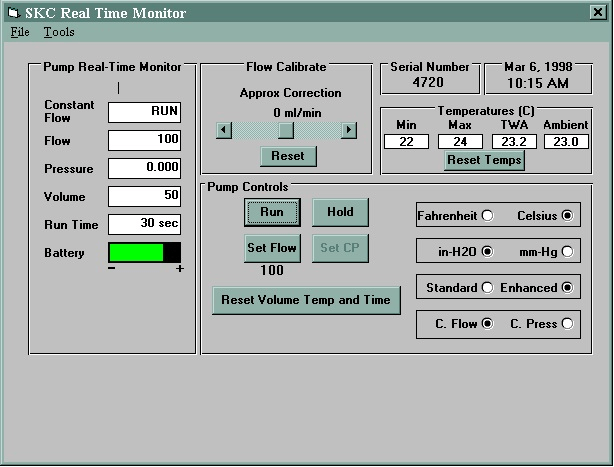

DataTrac Software - Example of using it to monitor a pump in real time

DataTrac: Scheduling a Sample Run using the Clock and Calendar

Simple graphical method to set up sample run times.

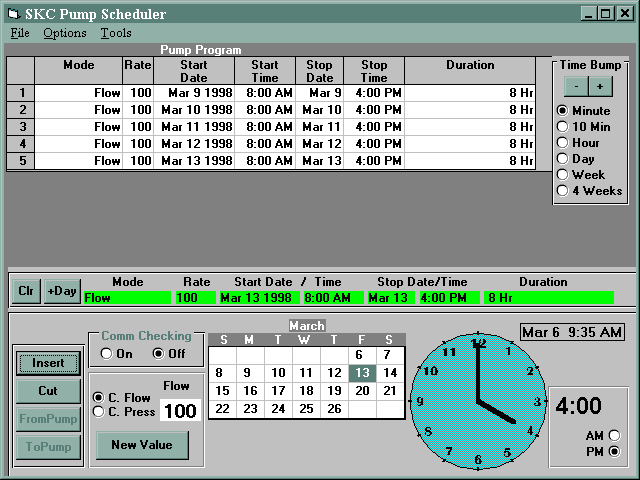

DataTrac Software - Example of Setting Up a Schedule

DataTrac: Setting Up Data Sheet for Sample

Enables important background data about the sample to be collected for documenting purposes.

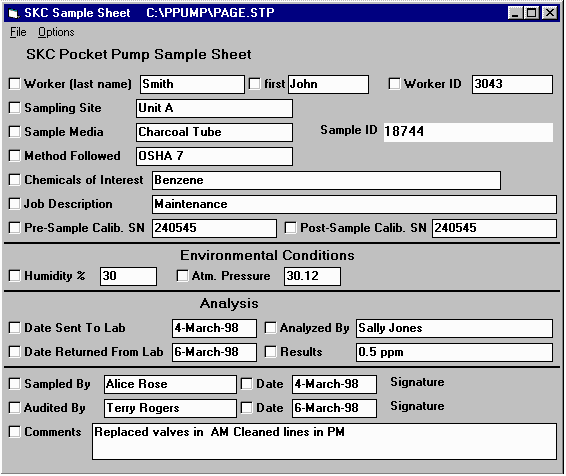

DataTrac Software - An example of the Setup Screen

DataTrac: Download Sample Data

Pump history includes records of all pump operations performed such as pump mode (running, holding, and faults), flow rate, start and stop dates of sample runs, run time, and volume.

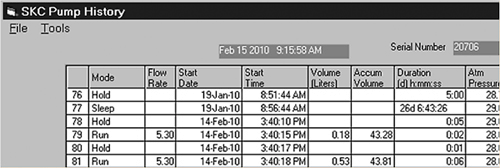

DataTrac Software - Example of the Pump History Screen showing records of pump use, faults, etc

DataTrac: Download Calibration

The SKC AirChek 3000 and Leland Legacy pumps store both calibration and sampling data. DataTrac® combines calibration data and pump sampling history to produce printable reports that can be used as documentation for ISO9000, quality programmes and occupational health and safety management systems.

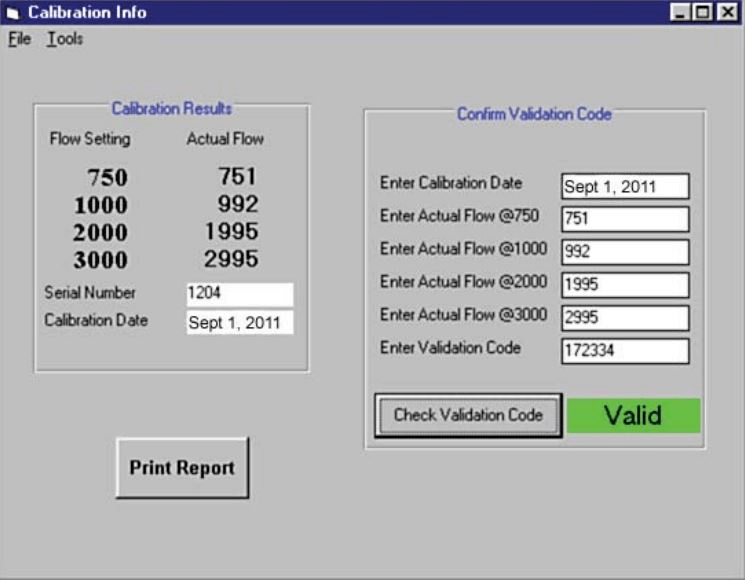

DataTrac Software - An Example of the Calibration Screen when calibrating a pump

DataTrac: Create Worker Exposure Profiles

Using DataTrac's advanced information retrieval system, create a sampling record with worker information, sampling data, and downloaded pump history information that can be printed or saved to a file.

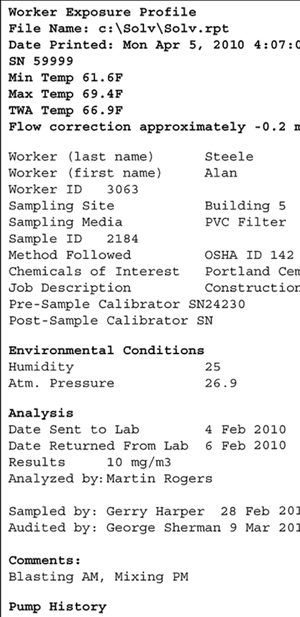

DataTrac Software - An Example of the Exposure Profile, showing measured data collected by the pump

DataTrac for AirChek 3000 Pump
Description Part Number
DataTrac® Interface and Software Kit for AirChek 3000 Pump 877-91K
DataTrac® Software USB Stick for AirChek 3000 Pump P87791D
DataTrac for Leland Legacy Pump
Description Part Number
DataTrac® Interface and Software Kit for Leland Legacy Pump 877-92K
DataTrac® Software USB Stick for Leland Legacy Pump P87792D
Download DataTrac Software and Instructions

Please click on the download link relevant to your SKC pump.

DataTrac for AirChek 3000 Pump

DataTrac for the Leland Legacy Pump

After the file is downloaded, click your Browser Back button to return to this page.

Open the zip file and run the .exe file. When installation is complete, run DataTrac to ensure that it works. A copy of the operating instructions in PDF format is included in the download but also available for download:

DataTrac AirChek 3000 Instructions   DataTrac Leland Legacy Instructions
