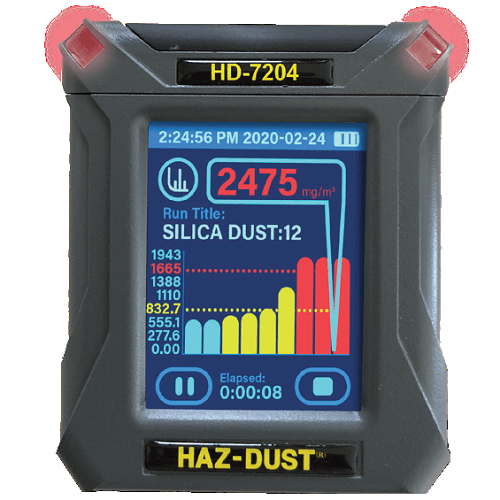

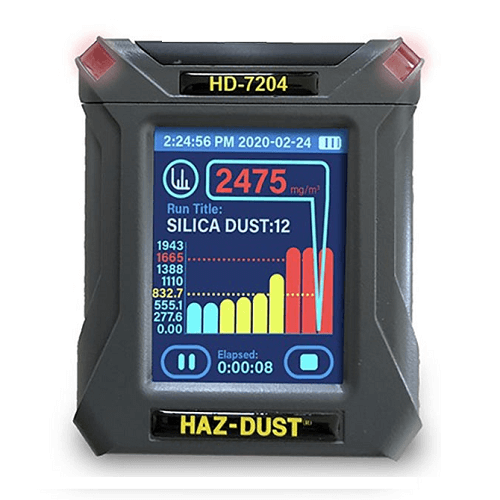

The HAZ-DUST 7204 is an instrument for concurrent dust monitoring and gravimetric dust sampling. Its large colour touch screen shows a real time graphical display of airborne particulate concentration in the breathing zone. By combining a flow compensated pump for gravimetric sampling with an optical sensor for particulate monitoring the HAZ-DUST 7204 removes the need for two separate devices.

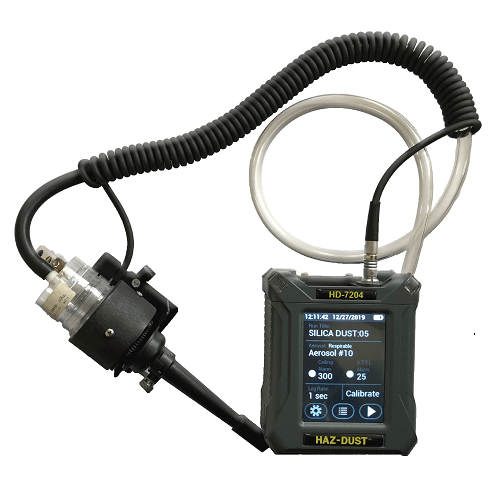

HAZ-DUST 7204 Particulate Monitor
HAZ-DUST 7204 in use

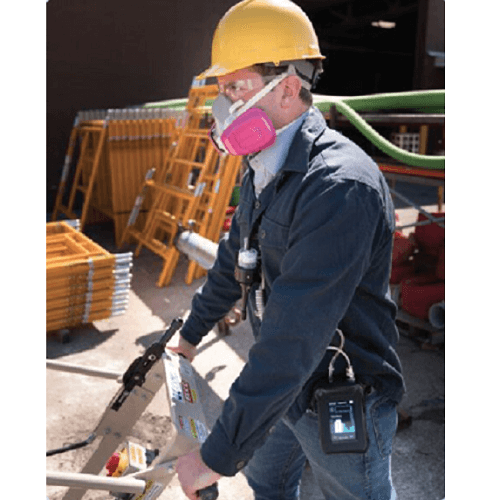

Worker wearing HAZ-DUST 7204

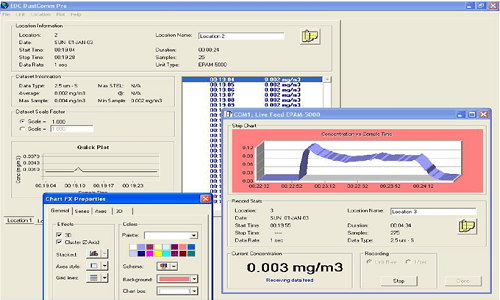

DustComm Pro Software provides graphing data

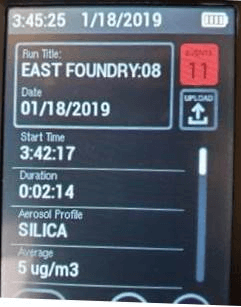

Full sampling data displayed on screen
HAZ-DUST 7204 Kit
  • Easy touch screen operation
  • Instantaneous, continuous display of TWA, STEL, Minimum, Maximum concentration in mg/m3
  • Sensor mounts directly in the breathing zone for a personal sample
  • Interchangeable sampling inlets for Inhalable, Thoracic and Respirable measurement
  • Can accept pre-weighed and preloaded 25 or 37 mm filter cassettes
  • Small and lightweight with integral belt clip
  • Operates for over 22 hours using rechargeable Li-Ion battery
  • Automatic data logging
  • Multiple language options
  • Easy to use DustComm Pro Software for data downloading, trend analysis and comprehensive reporting of concentration changes over time
Specifications

The HAZ-DUST 7204 optical particulate sensor operates on the principle of near-forward light scattering of infrared radiation. As the airborne particles enter the infrared beam, they scatter the light. The amount of light received by the photodetector is directly proportional to the aerosol concentration. Unique signal processing internally compensates for noise and drift. It immediately and continuously measures the concentration of airborne dust particles and displays the result in mg/m3.

Accuracy    ±10% to filter gravimetric SAE fine test dust
Sensing Range    0.001 to 500 mg/m3 or 1 to 500,000 µg/m3
Display Resolution    1 µg/m3 (0.001 mg/m3)
Particle Size Range    0.1 to 100 µm
Measurement Precision    ±0.02 mg/m3
Calibration    NIOSH Method 0600 gravimetric reference - NIST-traceable SAE fine test dust
Display     8.9 cm (3.5 in) colour with auto-dimming
Displayed Particle Concentration    Instantaneous, TWA, STEL, Minimum, Maximum
Sample Flow Rate    1 to 5 L/min (adjustable). Auto adjusts for sample head
Power    Rechargeable Li-Ion battery
Operating Time    ≥22 hours
Charging Time    3 hours, depending on battery state
Digital Output    Micro USB
Data Storage    43,200 data points
Temperature    Operating: 0 to +50°C (32 to 122°F)
Storage:   -20 to +70°C (-4 to 158°F)
Dimensions    Case:   8.9 x 5.7 x 12.1 cm (3.5 x 2.25 x 4.75 inches)
Sensor: 4.4 x 3.8 (1.75 x 1.5 inches)
Weight    517 g (1.14 lbs)
Applications
 Silica         Diesel         Coal
 Lead         Construction dust         Welding fumes
 Wild fires         Concrete/cement         Nuisance dusts
 Grinding dusts         Pharmaceuticals         Paint spray
 Grain         Soil remediations         Wood/paper
 Cadmium         Chromate         Tobacco smoke
 Dry chemicals         Oil mists
HAZ-DUST 7204
Description Part Number

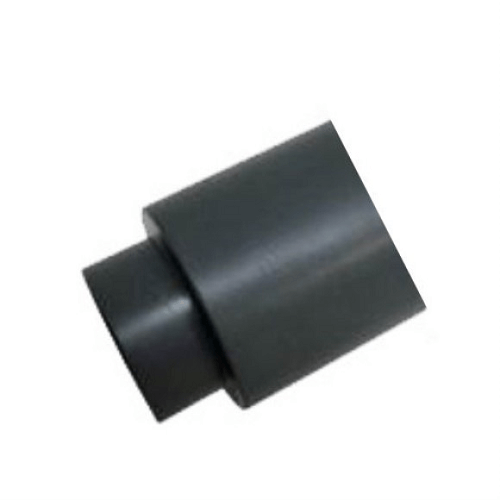

HAZ-DUST 7204 Monitor Kit, includes:

monitor, 37 mm 2-piece opaque filter cassette, open-faced sampling adapter, thoracic sampling inlet, flow adapter, zero accessory, battery charger, and DustComm Pro Software, in a hard carry case
(requires calibration with equipment sold separately, see accessories below)

770-7204
HAZ-DUST 7204 Accessories
Description Part Number
Impactor 10 µm, interchangeable 770-7211  770-7211 Haz-Dust 7204 Impactor, Interchangeable 10µm
Impactor 5 µm, interchangeable 770-7212  770-7212 Haz-Dust 7204 Impactor, Interchangeable 5µm
Impactor 2.5 µm, interchangeable 770-7213  770-7213 Haz-Dust 7204 Impactor, Interchangeable 2.5 µm
Respirable Impactor, GS-3 Cyclone, mounts on the HAZ-DUST 7204 sensor 225-103  225-103 Respirable Impactor, GS-3 Cyclone, mounts on HAZ-DUST IV sensor
Adaptor for Respirable Impactor, required when using GS-3 Cyclone 770-313  770-313 Adaptor for Respirable Impactor, required when using GS-3 Cyclone
Calibration Standard, for verifying span and optical sensor performance 770-327  770-140 Calibration Standard, for verifying span and optical sensor performance
Inhalable IOM Sampling Head 225-70A  IOM Multidust Sampler and Cassette in conductive plastic
IOM Adaptor, for mounting IOM sampling head 770-4204  IOM Adaptor, for mounting IOM sampling head
Recommended chek-mate flowmeter, 500-5000 ml/min, for calibrating the Sampling Head

(Other Calibrators available , see Calibration)
375-0550  375-0550 chek-mate flowmeter, 500-5000 ml/min, for calibrating the Inhalable Sampling Head
Calibration Chamber, for calibrating and setting pump airflow when using GS-3 and GS-1 Cyclones 225-112  225-112 Calibration Chamber, for calibrating and setting pump airflow when using GS-3 Cyclone
Cleaning Kit, includes bulb, swabs and lens tissue (no air canister) 770-305B no image
DustComm Pro Software on USB Flash Drive 770-225  770-225 DustComm Pro Software on USB Flash Drive
Black protective pouch 770-7208  Black carry pouch for HD-7204, DPM-7204 and SM-7204
Replacement battery pack 770-7205  770-7205 Replacement battery pack for HD-7204 Particulate Monitor
Haz-Dust 7204 Impactor, Interchangeable

770-7211

Haz-Dust 7204 Impactor, Interchangeable 5µm

770-7212

Haz-Dust 7204 Impactor, Interchangeable 2.5 µm

770-7213

Respirable Impactor, GS-3 Cyclone, mounts on the HAZ-DUST 7204 sensor

225-103

Adaptor for Respirable Impactor, required when using GS-3 Cyclone

770-313

Calibration Standard, for verifying span and optical sensor performance

770-327

Inhalable IOM Sampling Head

225-70A

IOM Adaptor, for mounting IOM sampling head

770-4204

chek-mate flowmeter, 500-5000 ml/min, for calibrating the Sampling Head

375-0550

Calibration Chamber, for calibrating and setting pump airflow when using GS-3 Cyclone

225-112

Cleaning Kit, includes bulb, swabs and lens tissue (no air canister)

770-305B

DustComm Pro Software on USB Flash Drive

770-225

Black protective pouch

770-7208

Replacement battery Pack

770-7205
