This ergonomically-designed sampling vest provides safe, comfortable sampling by securing up to 4 pumps or instruments.

Sampling Vest for Personal Exposure Monitoring - DISCONTINUED

Fitted with two strong pockets with snap closure on the front and on the back
Integral loops to channel tubing
Adjustable straps for optimal fit
Lightweight
Durable material
One size fits all

Description	Pack Size	Part Number
Personal Sampling Vest, holds pump(s), media and includes loops to retain tubing for ideal placement.	Each	xxx-xxx

The SKC Universal sampling pump does it all. Not just a personal pump, but an option for area and asbestos sampling too. The wide flow range allows dust, gas, bag and impinger sampling which when taken all together cover almost all sampling methods to meet COSHH requirements. The Universal is used by hygienists and safety professionals who demand the ultimate in flexibility and reliability.

The Universal Pump is available as a standard "no frills" version up to a fully programmable model - all models have Intrinsic Safety and CE approval. The Universal has also found many applications in environmental and fenceline monitoring due to its timer facility.

Suitable for dust, gas/vapour, bag and impinger sampling
ATEX certified for use in hazardous areas
Wide flow range with built-in low flow pressure regulator
Integral flow indicator
High build quality for a long working life
Clear, anti-tamper cover protects the controls
Three models available with a choice of features

Standard model - simple on/off control
Intermediate model - as Standard model plus LCD, built-in timer, hold feature to pause pump and timer, flow fault shutdown with auto restart, low battery fault and high back pressure with timer freeze
Deluxe model - as Intermediate model plus programmable run time, delayed start up to 9999 minutes, timed shutdown and intermittent sampling function

The Universal is also available in a range of basic pump, dust sampling, vapour/gas sampling and combined dust/vapour sampling kits.

Specifications

Universal Pumps

Universal Standard Pump Kits

Description	Part Number
Universal Standard Single Pump Basic Kit includes: Universal ATEX Approved Standard Pump with NiMH battery pack operating manual, tool kit, single charger, 1 m length Tygon tubing, Step by Step Guide and a carry case	224-44MTXK
Universal Standard Five Pump Basic Kit includes: 5 Universal ATEX Approved Standard Pumps with NiMH battery packs, 5 operating manuals, 5 tool kits, five station charger, 5 x 1 m length Tygon tubing, 3 Step by Step Guides and a carry case	224-44MTXK5
Universal Standard Single Pump Dust Sampling Kit includes: Universal ATEX Approved Standard Pump with NiMH battery pack, operating manual, tool kit, single charger, 1 m length Tygon tubing, IOM Multidust sampler, 5 IOM Multidust cassettes, calidaptor, Step by Step Guide and a carry case	224-44MTXKP
Universal Standard Five Pump Dust Sampling Kit includes: 5 Universal ATEX Approved Standard Pumps with NiMH battery packs, 5 operating manuals, 5 tool kits, five station charger, 5 x 1 m length Tygon tubing, 5 IOM Multidust samplers, 15 IOM Multidust cassettes, calidaptor, 3 Step by Step Guides and a carry case	224-44MTXK5P
Universal Standard Single Pump Vapour Kit includes: Universal ATEX Approved Standard Pump with NiMH battery pack, operating manual, tool kit, single charger, 1 m length Tygon tubing, single adjustable tube holder, protective tube cover, tube breaker, Step by Step Guide and a carry case	224-44MTXKV
Universal Standard Five Pump Vapour Sampling Kit includes: 5 Universal ATEX Approved Standard Pumps with NiMH battery packs, 5 operating manuals, 5 tool kits, five station charger, 5 x 1 m length Tygon tubing, 5 single adjustable tube holders, 5 protective tube covers, tube breaker, 3 Step by Step Guides and a carry case	224-44MTXK5V
Universal Standard Single Pump Combined Sampling Kit includes: Universal ATEX Approved Standard Pump with NiMH battery pack, operating manual, tool kit, single charger, 1 m length Tygon tubing, single adjustable tube holder, protective tube cover, tube breaker, IOM Multidust sampler, 5 IOM Multidust cassettes, calidaptor, Step by Step Guide and a carry case	224-44MTXKC
Universal Standard Five Pump Combined Sampling Kit includes: 5 Universal ATEX Approved Standard Pumps with NiMH battery packs, 5 operating manuals, 5 tool kits, five station charger, 5 x 1 m length Tygon tubing, 5 single adjustable tube holders, 5 protective tube covers, tube breaker, 5 IOM Multidust samplers, 15 IOM Multidust cassettes, calidaptor, 3 Step by Step Guides and a carry case	224-44MTXK5C

Universal Intermediate Pump Kits

Description	Part Number
Universal Intermediate Single Pump Basic Kit includes: Universal ATEX Approved Intermediate Pump with NiMH battery pack, operating manual, tool kit, single charger, 1 m length Tygon tubing, Step by Step Guide and a carry case	224-PCMTX4K
Universal Intermediate Five Pump Basic Kit includes: 5 Universal ATEX Approved Intermediate Pumps with NiMH battery packs, 5 operating manuals, 5 tool kits, five station charger, 5 x 1 m length Tygon tubing, 3 Step by Step Guides and a carry case	224-PCMTX4K5
Universal Intermediate Single Pump Dust Sampling Kit includes: Universal ATEX Approved Intermediate Pump with NiMH battery pack, operating manual, tool kit, single charger, 1 m length Tygon tubing, IOM Multidust sampler, 5 IOM Multidust cassettes, calidaptor, Step by Step Guide and a carry case	224-PCMTX4KP
Universal Intermediate Five pump Dust Sampling Kit includes: 5 Universal ATEX Approved Intermediate Pumps with NiMH battery packs, 5 operating manuals, 5 tool kits, five station charger, 5 x 1 m length Tygon tubing, 5 IOM Multidust samplers, 15 IOM Multidust cassettes, calidaptor, 3 Step by Step Guides and a carry case	224-PCMTX4K5P
Universal Intermediate Single Pump Vapour Sampling Kit includes: Universal ATEX Approved Intermediate Pump with NiMH battery pack, operating manual, tool kit, single charger, 1 m length Tygon tubing, single adjustable tube holder, protective tube cover, tube breaker, Step by Step Guide and a carry case	224-PCMTX4KV
Universal Intermediate Five Pump Vapour Sampling Kit includes: 5 Universal ATEX Approved Intermediate Pumps with NiMH battery packs, 5 operating manuals, 5 tool kits, five station charger, 5 x 1 m length Tygon tubing, 5 single adjustable tube holders, 5 protective tube covers, tube breaker, 3 Step by Step Guides and a carry case	224-PCMTX4K5V
Universal Intermediate Single Pump Combined Sampling Kit includes: Universal ATEX Approved Intermediate Pump with NiMH battery pack, operating manual, tool kit, single charger, 1 m length Tygon tubing, single adjustable tube holder, protective tube cover, tube breaker, IOM Multidust sampler, 5 IOM Multidust cassettes, calidaptor, Step by Step Guide and a carry case	224-PCMTX4KC
Universal Intermediate Five Pump Combined Sampling Kit includes: 5 Universal ATEX Approved Intermediate Pumps with NiMH battery packs, 5 operating manuals, 5 tool kits, five station charger, 5 x 1 m length Tygon tubing, 5 single adjustable tube holders, 5 protective tube covers, tube breaker, 5 IOM Multidust samplers, 15 IOM Multidust cassettes, calidaptor 3 Step by Step Guides and a carry case	224-PCMTX4K5C

Universal Deluxe Pump Kits

Description	Part Number
Universal Deluxe Single Pump Basic Kit includes: Universal ATEX Approved Deluxe with NiMH battery pack operating manual, tool kit, single charger, 1 m length Tygon tubing, Step by Step Guide and a carry case	224-PCMTX8K
Universal Deluxe Five Pump Basic Kit includes: 5 Universal ATEX Approved Deluxe Pumps with NiMH battery packs, 5 operating manuals, 5 tool kits, five station charger, 5 x 1 m length Tygon tubing, 3 Step by Step Guides and a carry case	224-PCMTX8K5
Universal Deluxe Single Pump Dust Sampling Kit includes: Universal ATEX Approved Deluxe Pump with NiMH battery pack, operating manual, tool kit, single charger, 1 m length Tygon tubing, IOM Multidust sampler, 5 IOM Multidust cassettes, calidaptor, Step by Step Guide and a carry case	224-PCMTX8KP
Universal Deluxe Five Pump Dust Sampling Kit includes: 5 Universal ATEX Approved Deluxe Pumps with NiMH battery packs, 5 operating manuals, 5 tool kits, five station charger, 5 x 1 m length Tygon tubing, 5 IOM Multidust samplers, 15 IOM Multidust cassettes, calidaptor, 3 Step by Step Guides and a carry case	224-PCMTX8K5P
Universal Deluxe Single Pump Vapour Sampling Kit includes: Universal ATEX Approved Deluxe Pump with NiMH battery pack, operating manual, tool kit, single charger, 1 m length Tygon tubing, single adjustable tube holder, protective tube cover, tube breaker, Step by Step Guide and a carry case	224-PCMTX8KV
Universal Deluxe Five Pump Vapour Sampling Kit includes: 5 Universal ATEX Approved Deluxe Pumps with NiMH battery packs, 5 operating manuals, 5 tool kits, five station charger, 5 x 1m length Tygon tubing, 5 single adjustable tube holders, 5 protective tube covers, tube breaker, 3 Step by Step Guides and a carry case	224-PCMTX8K5V
Universal Deluxe Single Pump Combined Sampling Kit includes: Universal ATEX Approved Deluxe Pump with NiMH battery pack, operating manual, tool kit, single charger, 1 m length Tygon tubing, single adjustable tube holder, protective tube cover, tube breaker, IOM Multidust sampler, 5 IOM Multidust cassettes, calidaptor, Step by Step Guide and a carry case	224-PCMTX8KC
Universal Deluxe Five Pump Combined Sampling Kit includes: 5 Universal ATEX Approved Deluxe Pumps with NiMH battery packs, 5 operating manuals, 5 tool kits, five station charger, 5 x 1 m length Tygon tubing, 5 single adjustable tube holders, 5 protective tube covers, tube breaker, 5 IOM Multidust samplers, 15 IOM Multidust cassettes, calidaptor, 3 Step by Step Guides and a carry case	224-PCMTX8K5C

Universal Pump Accessories

Description	Part Number
Single Station Charger with multiplug for UK, Europe, USA, Australia, New Zealand	223-203A
Five Station Charger with multiplug for UK, Europe, USA, Australia, New Zealand	223-103A
chek-mate flowmeter, 500-5000 ml/min (recommended) (Other Calibrators available , see Calibration)	375-0550
Pressure (exhaust) port fitting. Required when using the Universal pump to fill gas sample bags. Note that the aluminium alloy pressure port fitting is not suitable for use in Ex EPL GA / Zone 0 potentially explosive atmosphere hazardous locations when it is fitted to the Universal MTX series pumps. Please contact SKC for more information.	P22417C
Black nylon pump pouch with adjustable waist belt and shoulder strap	224-87
Red nylon pump pouch with adjustable waist belt and shoulder strap	224-95A
Single pump carry case with foam cutouts for charger and accessories, and useful pockets for manuals, tubing, etc	224-98
Five pump carry case with foam cutouts for charger and accessories, and useful pockets for manuals, tubing, etc	224-97A
Pelican Hard-Sided Single Pump Case which is watertight, airtight, dustproof and crushproof (LxWxH: 33.9 x 29.5 x 15.2 cm)	224-901
Pelican Hard-Sided Five Pump Case which is watertight, airtight, dustproof and crushproof. It has wheels for easy transport and a retractable handle (LxWxH 52.4 x 42.8 x 20.6 cm).	224-908
Waist belt, extends up to 122 cm (48 inches).	224-12
Battery Pack for Universal ATEX Pump	P22419MTX
Battery Eliminator with European plug. Provides mains power operation of the pump for extended sample periods. Use of the eliminator will void the Intrinsic Safety certification - not to be used in hazardous areas.	223-305B
Battery Eliminator with UK plug. Provides mains power operation of the pump for extended sample periods. Use of the eliminator will void the Intrinsic Safety certification - not to be used in hazardous areas.	223-305C

223-203A

223-103A

224-87

224-95A

224-98

224-97A

224-901

224-908

224-12

Documentation

The SKC AirChek XR5000 sample pumps are design to offer users enhanced battery power and easy operation in a lightweight pump that provides accurate airflows from 5-5000 ml/min (5-500 ml/min requires a low flow adaptor kit). Two battery options are available which provides flexibility and economy for different users and different applications including long run times.

The AirChek XR5000 air sampling pump will operate for up to 40 hours

Capable of running for up to 40 hours at 2 L/min
Wide flow range from 5 to 5000 ml/min
2 interchangeable battery options
High capacity Li-Ion battery for extended run times
Patented, highly accurate electronic flow control system
Automatic temperature compensated flow
Simple operation with easy to use keypad
UL Approved for intrinsic safety
Pump running LED indicator
Programmable run times
Extended back pressure capability

The AirChek XR5000 is also available in basic pump, dust sampling, vapour/gas sampling and combined dust/vapour sampling kits.

Specifications

AirChek XR5000 Pumps

AirChek XR5000 High Capacity (4 cell) Pump Kits

Description	Part Number
4 cell Pump Basic Kit includes: AirChek XR5000 pump with 4 cell Li-Ion battery pack UL Approved, single charger, Basic Step by Step Guide, 1 m length Tygon tubing, and operating manual in a durable carry case	210-5001K
4 cell Five Pump Basic Kit includes: 5 AirChek XR5000 pumps with 4 cell Li-Ion battery packs UL Approved, 5 single chargers, 3 Basic Step by Step Guides, 5 x 1 m lengths of Tygon tubing, and 5 operating manuals in a durable carry case	210-5001K5
4 cell Single Pump Dust Sampling Kit includes: AirChek XR5000 pump with 4 cell Li-Ion battery pack UL Approved, single charger, Basic Step by Step Guide, 1 m length of Tygon tubing, IOM Multidust sampler, 5 IOM Multidust cassettes, calidaptor and an operating manual in a durable carry case	210-5001KP
4 cell Five Pump Dust Sampling Kit includes: 5 AirChek XR5000 pumps with 4 cell Li-Ion battery packs UL Approved, 5 single chargers, 3 Basic Step by Step Guides, 5 x 1 m lengths of Tygon tubing, 5 IOM Multidust samplers, 15 IOM Multidust cassettes, calidaptor and 5 operating manuals in a durable carry case	210-5001K5P
4 cell Single Pump Vapour Sampling Kit includes: AirChek XR5000 pump with 4 cell Li-Ion battery pack UL Approved, single charger, Basic Step by Step Guide, 1 m length of Tygon tubing, All-in-One Adjustable Tube Holder, Type A Protective Tube Cover, tube breaker and an operating manual in a durable carry case	210-5001KV
4 cell Five Pump Vapour Sampling Kit includes: 5 AirChek XR5000 pumps with 4 cell Li-Ion battery packs UL Approved, 5 single chargers, 3 Basic Step by Step Guides, 5 x 1 m lengths of Tygon tubing, 5 All-in-One Adjustable Tube Holders, 5 Type A Protective Tube Cover, tube breaker and 5 operating manuals in a durable carry case	210-5001K5V
4 cell Single Pump Combined Sampling Kit includes: AirChek XR5000 pump with 4 cell Li-Ion battery pack UL Approved, single charger, Basic Step by Step Guide, 1 m length of Tygon tubing, All-in-One Adjustable Tube Holder, Type A Protective Tube Cover, tube breaker, IOM Multidust sampler, 5 IOM Multidust cassettes, calidaptor and an operating manual in a durable carry case	210-5001KC
4 cell Five Pump Combined Sampling Kit includes: 5 AirChek XR5000 pumps with 4 cell Li-Ion battery packs UL Approved, 5 single chargers, 3 Basic Step by Step Guides, 5 x 1 m lengths of Tygon tubing, 5 All-in-One Adjustable Tube Holders, 5 Type A Protective Tube Cover, tube breaker, 5 IOM Multidust samplers, 15 IOM Multidust cassettes, calidaptor and 5 operating manuals in a durable carry case	210-5001K5C

AirChek XR5000 Standard Capacity (2 cell) Pump Kits

Description	Part Number
2 cell Pump Basic Kit includes: AirChek XR5000 pump with 2 cell Li-Ion battery pack UL Approved, single charger, Basic Step by Step Guide, 1 m length Tygon tubing, and operating manual in a durable carry case	210-5002K
2 cell Five Pump Basic Kit includes: 5 AirChek XR5000 pumps with 2 cell Li-Ion battery packs UL Approved, 5 single chargers, 3 Basic Step by Step Guides, 5 x 1 m lengths of Tygon tubing, and 5 operating manuals in a durable carry case	210-5002K5
2 cell Single Pump Dust Sampling Kit includes: AirChek XR5000 pump with 2 cell Li-Ion battery pack UL Approved, single charger, Basic Step by Step Guide, 1 m length of Tygon tubing, IOM Multidust sampler, 5 IOM Multidust cassettes, calidaptor and an operating manual in a durable carry case	210-5002KP
2 cell Five Pump Dust Sampling Kit includes: 5 AirChek XR5000 pumps with 2 cell Li-Ion battery packs UL Approved, 5 single chargers, 3 Basic Step by Step Guides, 5x 1 m lengths of Tygon tubing, 5 IOM Multidust samplers, 15 IOM Multidust cassettes, calidaptor and 5 operating manuals in a durable carry case	210-5002K5P
2 cell Single Pump Vapour Sampling Kit includes: AirChek XR5000 pump with 2 cell Li-Ion battery pack UL Approved, single charger, Basic Step by Step Guide, 1 m length of Tygon tubing, All-in-One Adjustable Tube Holder, Type A Protective Tube Cover, tube breaker and an operating manual in a durable carry case	210-5002KV
2 cell Five Pump Vapour Sampling Kit includes: 5 AirChek XR5000 pumps with 2 cell Li-Ion battery packs UL Approved, 5 single chargers, 3 Basic Step by Step Guides, 5 x 1 m lengths of Tygon tubing, 5 All-in-One Adjustable Tube Holders, 5 Type A Protective Tube Cover, tube breaker and 5 operating manuals in a durable carry case	210-5002K5V
2 cell Single Pump Combined Sampling Kit includes: AirChek XR5000 pump with 2 cell Li-Ion battery pack UL Approved, single charger, Basic Step by Step Guide, 1 m length of Tygon tubing, All-in-One Adjustable Tube Holder, Type A Protective Tube Cover, tube breaker, IOM Multidust sampler, 5 IOM Multidust cassettes, calidaptor and an operating manual in a durable carry case	210-5002KC
2 cell Five Pump Combined Sampling Kit includes: 5 AirChek XR5000 pumps with 2 cell Li-Ion battery packs UL Approved, 5 single chargers, 3 Basic Step by Step Guides, 5 x 1 m lengths of Tygon tubing, 5 All-in-One Adjustable Tube Holders, 5 Type A Protective Tube Cover, tube breaker, 5 IOM Multidust samplers, 15 IOM Multidust cassettes and 5 operating manuals in a durable carry case	210-5002K5C

AirChek XR5000 Pump Accessories

Description	Part Number

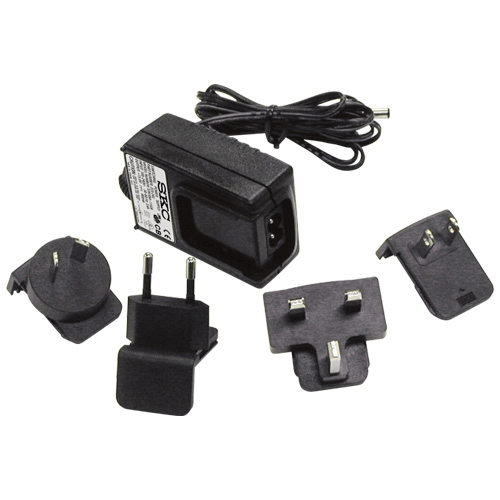

Single Charger 100-240 V with multiplug for UK, Europe, USA, Australia, New Zealand	223-241
chek-mate flowmeter, 500-5000 ml/min (recommended) (Other Calibrators available , see Calibration)	375-0550
Black nylon pump pouch with adjustable waist belt and shoulder strap	224-88
Red nylon pump pouch with adjustable waist belt and shoulder strap	224-96A
Noise-reducing Black nylon pouch with adjustable waist belt and shoulder strap - can reduce noise level from 62.5 to 55dBA (4-cell Li-Ion)	224-96C
Noise-reducing Black nylon pouch with adjustable waist belt and shoulder strap - can reduce noise level from 62.5 to 55dBA (2-cell Li-Ion)	224-913
Single pump carry case with foam cutouts for charger and accessories, and useful pockets for manuals, tubing, etc	224-98
Five pump carry case with foam cutouts for charger and accessories, and useful pockets for manuals, tubing, etc	224-97B
Pelican Hard-Sided Single Pump Case which is watertight, airtight, dustproof and crushproof (LxWxH: 33.9 x 29.5 x 15.2 cm)	224-901
Pelican Hard-Sided Five Pump Case which is watertight, airtight, dustproof and crushproof. It has wheels for easy transport and a retractable handle (LxWxH 55.9 x 35.1 x 22.9 cm).	224-907
Pelican Deluxe Hard-Sided Five Pump Case which is watertight, airtight, dustproof and crushproof. It has wheels for easy transport and a retractable handle. Larger version of 224-907 to accomodate more accessories. (LxWxH 55.9 x 45.5 x 26.5 cm).	224-910
Waist belt, extends up to 122 cm (48 inches).	224-12
Low Flow Adaptor kit allows the sample pump to sample with flow rates between 5 and 500 ml/min.	210-500
High Capacity (4 cell) Li-Ion Battery Pack	P85004A
Standard Capacity (2 cell) Li-Ion Battery Pack	P85002A

223-241

224-88

224-96A

224-96C

224-913

224-98

224-97B

224-901

224-907

Pelican Deluxe Hard-sided Five Pump Case

224-910

224-12

Documentation

The SKC Pocket Pump TOUCH is a compact personal sample pump, ideal for low flow air sampling. The Pocket Pump TOUCH features touch screen operation and it is also certified for Intrinsic Safety.

Optional Quick-Connect Adaptor for Bag Sampling

Intuitive touch screen for easy navigation and programming
Compact, lightweight design
Flow range, 20 to 500 ml/min, ideal for vapour sampling
Bluetooth communication with PC/Laptop and DataTrac® Pro software
SmartWave App - Set, operate and monitor the Pocket Pump TOUCH from your mobile
Powerful Li-Ion battery for long run times, over 20 hours at 500 ml/min
Large, high contrast backlit LCD
Constant Flow and Constant Pressure modes
Rubber case overmoulding provides quiet operation, a non-slip grip and impact protection
Built-in sampling data storage
Optional quick-connect adaptor for secure bag sampling
The Pocket Pump TOUCH is also available in vapour/gas kits.

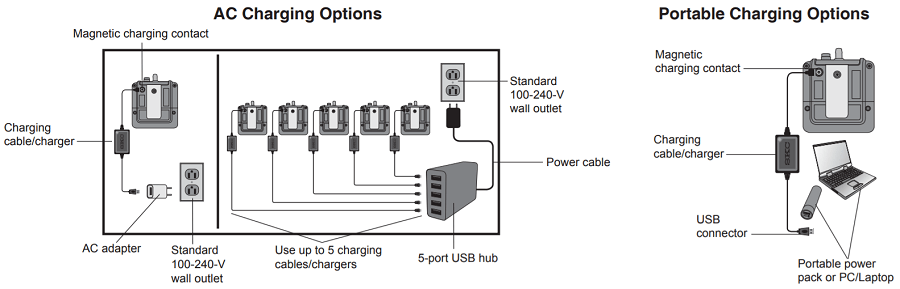

Flexible charging options:

Charging Options for the Pocket Pump Touch, either AC Mains, USB or portable USB powerbank.

Please click on the image to view the video.

Specifications

Flow System		Pump can be switched between constant flow or constant pressure as required Flow range in Constant Flow mode: 20 to 500 ml/min Compensation in Constant Flow Range: 20 to 500 ml/min up to 20 inches water pressure Pressure Range in Constant Pressure Mode: 1 to 20 inches water Corrects for changes in back pressure, temperature and atmospheric pressure Flow fault icon appears if flow is restricted or blocked Auto-restart is attempted after flow fault
Power Supply		Removable, rechargeable Li-Ion battery pack provides 20+ hours minimum run time at 500 ml/min and up to 20 inches water back pressure Charging Time: ≤ 10 hours (≤ 4.5 hours to 80% capacity), depending on battery capacity and level of discharge Extended run times available with charger Low battery indication on LCD
Display		High contrast backlit LCD displays time, date, battery status, flow rate, sample volume, temperature, atmospheric pressure, back pressure, programmed run remaining time and elapsed run time Capacitive touch screen display with auto-dim and locking options
Programmable		Using the optional DataTrac® Pro PC software and USB Bluetooth Adaptor, the pump run time data and history can be downloaded, as well as sampling sequences set up including delayed start, timed stop and intermittent sampling, all at different flow rates Using the Smartwave app the pump can be set up and monitored
Storage		Approx. Capacity: 1 week at 1 minute average, 1 month at 5 minute average
Certifications		Intrinsic safety (SKC Part No. 220-1000TC operated with SKC Battery Pack Part No. P76303) Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III, T4; Class I, Zone 0, Group IIC T4; Exia -20°C ≤ Ta ≤ 45°C EX II 1G Exia IIC T4 Ga IECEx UL 16.0113 DEMKO 16ATEX 1600 CE 0539 RoHS compliant
Operating Temperature		Operating: 0 to 45°C (32 to 113°F) Charging: 0 to 45°C (32 to 113°F) Storage: -20 to 45°C (-4 to 113°F)
Case		IP 64 rated Durable polycarbonate case Rubberised anti-static overmoulding Large belt clip
Tubing Required		1/4" ID
Dimensions		8.1 x 9.7 x 3.8 cm (3.2 x 3.8 x 1.5")
Weight		235 g (8.3 oz)

Pocket Pump Touch

Pocket Pump Touch Kits

Pocket Pump Touch Accessories

Description	Part Number
Single Charger with power cable and USB magnetic single charger cable	220-300A
5 port USB Hub with power cable, accommodates up to 5 single chargers. Requires 1 x USB magnetic charger cable P75739 for each Pocket Pump TOUCH.	220-400
USB to Pocket Pump TOUCH - magnetic charger cable	P75739
chek-mate flowmeter, 20-500 ml/min (recommended) (Other Calibrators available , see Calibration)	375-00205
Quick-connect Bag Sampling Adaptor, installs on pump exhaust port. Holds rigid PTFE 1/4in OD tubing securely for bag sampling. Simply press to release tubing.	220-200
USB Bluetooth^® Adaptor (required for free software download and use of DataTrac Pro^® PC software for Pocket Pump TOUCH*)	877-94
5 Pump Kit Case, Pelican	222-93
Replacement Li-Ion Battery Pack	P76303

* DataTrac^® Pro PC software is only available as a download

220-300

220-400

220-200

877-94

USB to Pocket Pump Touch Magnetic Single Charger Cable

P75739

Click for details

Documentation

The Leland Legacy is the ultimate in high flow sampling providing the high flow and long run times of a vacuum-style pump in a compact, portable and battery-operated sampler.

Ideal for 24 hour indoor air monitoring or unattended ambient air sampling
Provides high flows and long run times
Low operational noise
Advanced compensated flow control
Programmable run times using the large keypad or optional DataTrac PC software
Rubberised case provides grip and protection
Pump running indicator LED
Automatic calibration using CalChek and High Flow chek-mate
Records pump history, downloadable using optional DataTrac PC software

Sioutas Impactor at 9 L/min
Personal Environment Monitor (PEM) at 10 L/min
Low Volume PUF tube at 5 L/min
Long run times with 37 mm 0.8 µm MCE filter (up to 32 hours at 5 L/min, up to 20 hours at 8 L/min)
Bioaerosols using VersaTrap Spore Cassette
Nanoparticles with 37 mm MCE filter at 7 L/min
Respirable silica and other compounds with low target concentrations with 8L/min PPI

Specifications

Leland Legacy Pump

Leland Legacy Pump Kits

Leland Legacy Pump Accessories

Description	Part Number
Single Charger 100-240 V with multiplug for UK, Europe, USA, Australia, New Zealand	223-241
chek-mate flowmeter, 5.0-30.0 l/min (recommended) (Other Calibrators available , see Calibration)	375-50300
Noise-reducing Black nylon pouch with adjustable waist belt and shoulder strap - can reduce noise level from 62.5 to 52dBA	224-89
Pelican Hard-Sided Single Pump Case which is watertight, airtight, dustproof and crushproof (LxWxH: 33.9 x 29.5 x 15.2 cm)	224-912
Pelican Hard-Sided Five Pump Case which is watertight, airtight, dustproof and crushproof. It has wheels for easy transport and a retractable handle (LxWxH 55.9 x 35.1 x 22.9 cm).	224-905
Waist belt, extends up to 122 cm (48 inches).	224-12

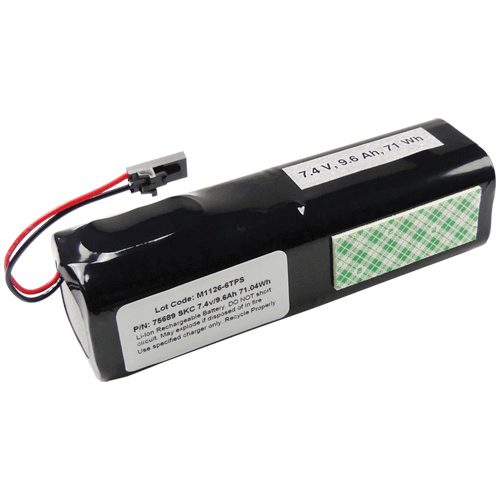

Replacement Li-Ion Battery Pack	P75692
DataTrac PC Software & Interface Kit for Leland Legacy	877-92K
DataTrac USB Adaptor Cable for Leland Legacy	P22103B
CalChek Interface Cable for use chek-mate 375-50300	375-200
CalChek Communication Cable, for use with a Defender Calibrator	210-502

223-241

224-89

224-912

224-905

224-12

210-502

Documentation

Page 1 of 2

Start
Prev
1
2
Next
End

Description	Part Number
Single Pump Vapour Sampling Kit includes pump as described above, Non-adjustable low flow single tube holder with Type A tube cover, tube breaker, single charger with power supply and USB magnetic charger cable, mini screwdriver kit, 1 m length of Tygon tubing and Step-by-Step Guide in a durable carry case	220-1000TCKV
5-Pump Vapour Sampling Kit includes 5 pumps as described above, 5 non-adjustable low flow single tube holders with Type A tube covers, tube breaker, 5 way USB Hub with power supply, 5 x USB magnetic charger cables, 5 x mini screwdriver kit, 5 x 1 m length of Tygon tubing and 3 Step-by-Step Guides in a durable carry case	220-1000TCK5V

Flow System		Flow range: 5,000 to 15,000 ml/min Constant flow compensation provides constant flow within ±5% for accurate air volume Built-in replaceable particulate trap to prevent contamination of sample Flow fault icon appears if flow is restricted or blocked Auto-restart is attempted after flow fault
Power Supply		Rechargeable Li-Ion battery pack provides 24+ hours minimum run time at 5000 ml/min (depending on media used) Low battery indication on LCD Charging time: 15 hours
Display		Displays flow rate, volume, temperature, atmospheric pressure, date and time, run time and pump status Continuously displays volume, pump and battery status
User Adjustable Values		Sample run time, calibration, clock display, flow rate, time of day, delayed start, temperature and atmospheric units
Operating Temperature		0 to 40°C (32 to 104°F)
Case		Anti-static thermoplastic case with protective rubber overmoulding and integral belt clip
Tubing Required		3/8" ID
Dimensions		20.0 x 10.0 x 7.0 cm (7.9 x 3.9 x 2.75")
Weight		1000 g (35.2 oz)

Description	Part Number
Single Pump Kit includes: Leland Legacy Pump, Li-Ion battery pack, 1 m length Tygon tubing and Single Charger, in a Pelican carry case	100-3002K
Five Pump Kit includes: 5 Leland Legacy Pumps, 5 Li-Ion battery packs, 5 x 1 m lengths of Tygon tubing, 5 Single Chargers, in a Pelican case	100-3002K5

Pocket Pump
TOUCH Brochure

Step by Step
Guide

Pocket Pump
TOUCH Manual

Pocket Pump TOUCH
Installation/Caution Guide

Pocket Pump
TOUCH SmartWave App

Flow System		Flow range: 5 to 4000 ml/min (5-500 ml/min requires adjustable low flow holder) Integral Constant Pressure Controller for low flow sampling Built-in replaceable particulate trap to prevent contamination of sample
Power Supply		NiMH battery pack provides 8 hours minimum runtime at 3000 ml/min and 20 inches of water back pressure Automatic pump shutdown in the event of a low battery condition Low battery indication on LCD (Intermediate and Deluxe models only) Battery eliminators available for running the pump continuously from AC mains (note that ATEX certification will be invalidated)
Certification		ATEX-approved and CE marked Intrinsic Safety EEx ia IIC T4
Operating Temperature		-20 to 40°C (-4 to 104°F)
Case		Metal casing with integral accessory mount and belt clip
Tubing Required		1/4" ID
Dimensions		13.1 x 13.1 x 5.7 cm (5.1 x 5.1 x 2.2")
Weight		915 g (32.2 oz)

Description	Part Number
Universal ATEX Approved Standard Pump with NiMH battery pack, operating manual and tool kit	224-44MTX
Universal ATEX Approved Intermediate Pump with NiMH battery pack, operating manual and tool kit	224-PCMTX4
Universal ATEX Approved Deluxe Pump with NiMH battery pack, operating manual and tool kit	224-PCMTX8


Universal Pump Brochure		Step by Step Guide		Universal Pump Manual

Flow System		Flow range: 1000 to 5000 ml/min, 5-500 ml/min with low flow adaptor Constant flow compensation provides constant flow within ±5% for accurate air volume Built-in replaceable particulate trap to prevent contamination of sample Flow fault icon appears if flow is restricted or blocked Auto-restart is attempted after flow fault
Power Supply		High capacity rechargeable Li-Ion (4 cell) battery pack provides 40+ hours minimum run time at 2000 ml/min and up to 30 inches water back pressure Standard capacity rechargeable Li-Ion (2 cell) battery pack also available Low battery indication on LCD
Display		Continuously displays battery status and displays run times, pump status and flow
Certification		Intrinsic Safety: UL to Class I, Div 1, Groups A, B, C and D; Class II, Div 1, Groups E, F and G; Class III, Div 1
Temperature Range		Operating: 0 to 40°C (32 to 104°F) Charging: 0 to 45°C (32 to 113°F) Storage: -20 to 35°C (-4 to 95°F)
Case		Fitted with integral belt clip
Tubing Required		1/4" ID
Dimensions		High capacity (4 cell) Li-Ion model: 14.0 x 7.6 x 5.8 cm (5.5 x 3 x 2.3") Standard (2 cell) Li-Ion model: 10.9 x x 7.6 x 5.8 cm (4.3 x 3 x 2.3")
Weight		High capacity (4 cell) Li-Ion: 600 g (21.1 oz) Standard (2 cell) Li-Ion model: 450 g (15.9 oz)

Description	Part Number
AirChek XR5000 Pump with 4 cell Li-Ion battery pack UL Approved with operating manual	210-5001
AirChek XR5000 Pump with 2 cell Li-Ion battery pack UL Approved with operating manual	210-5002


AirChek XR5000 Pump Brochure		Step by Step Guide		AirChek XR5000 Pump Manual

Description	Part Number
Pocket Pump TOUCH Pump with Li-Ion battery pack, instruction manual and mini screwdriver kit, Requires charger	220-1000TC

Description	Part Number
Leland Legacy Pump with Li-Ion battery pack and screwdriver set. Requires Single Charger (223-241)	100-3002
